Description
General part information
0732306110

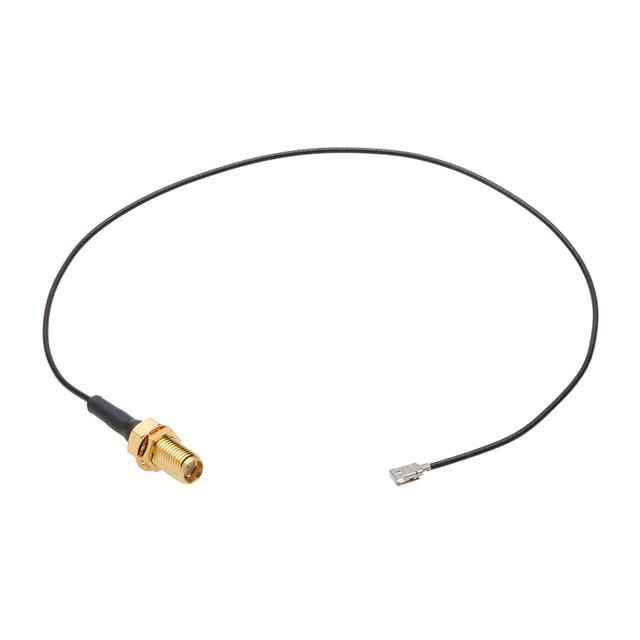

Cable Assembly Coaxial I-PEX MHF1 LK to SMA 1.32mm OD Coaxial Cable 12.01" (305.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0732306110 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 1.32 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.32mm OD Coaxial Cable |
| Cable Type Size | 1.32 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length | 12.01 in |
| Style | I-PEX MHF1 LK to SMA |
