896-088-555-808

Active

EDAC Inc.

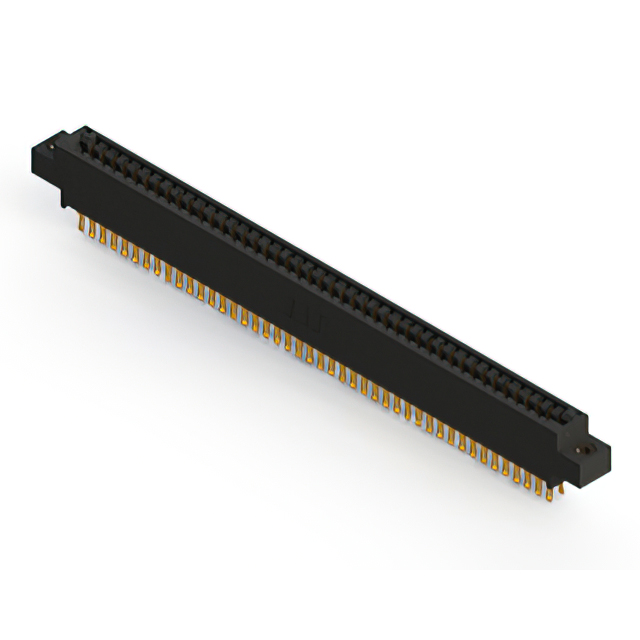

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-088-555-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 88POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 92.75
Newark	Each	1	$ 133.23
		100	$ 94.36
		250	$ 84.41
		500	$ 71.45
		1000	$ 58.63

Description

General part information

896-088 Series

88 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	896-088-555-808	896-088 Series

Card Thickness [Max]	1.78 mm	1.78 mm
Card Thickness [Max]	0.07 in	0.07 in
Card Thickness [Min]	1.37 mm	1.37 mm
Card Thickness [Min]	0.054 "	0.054 "
Card Type	Non Specified - Dual Edge	Non Specified - Dual Edge
Color	Black	Black
Contact Finish	Gold	Gold
Contact Finish Thickness	10 Áin	10 Áin
Contact Finish Thickness	0.25 Ám	0.25 Ám
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Cantilever	Cantilever
Features	Card Extender	Card Extender
Flange Feature	Top Mount Opening, 4-40, Threaded Insert	Flush Mount, Top Opening, Unthreaded, M3, Threaded Insert, Side Opening, Top Mount Opening, 4-40, Floating Bobbin, Side Mount Opening
Flange Feature	-	2.95 - 3.96 mm
Flange Feature	-	0.116 - 0.156 in
Flange Feature	-	3.25 mm
Flange Feature	-	0.128 in
Gender	Female	Female
Material - Insulation	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount	Through Hole, Board Edge, Straddle Mount, Through Hole, Right Angle
Number of Positions	88	88
Number of Positions/Bay/Row [custom]	44	44
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.125 in	0.125 in
Pitch [x]	3.18 mm	3.18 mm
Read Out	Dual	Dual
Termination	Solder Eyelet(s)	Wire Wrap, Solder, Solder Eyelet(s)
Termination Rows	2	2

896-088 Series

CONN EDGE DUAL FMALE 88POS 0.125

...

Part	Contact Material	Gender	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination Rows	Contact Type	Number of Positions/Bay/Row [custom]	Read Out	Number of Rows	Pitch [x]	Pitch [x]	Card Type	Contact Finish	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Features	Flange Feature	Flange Feature
EDAC Inc. 896-088-540-204	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Wire Wrap	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.96 mm	Flush Mount, Top Opening, Unthreaded	0.156 in	125 °C	-40 °C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black
EDAC Inc. 896-088-556-207	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Solder	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold		Flush Mount, M3, Threaded Insert, Top Opening		125 °C	-40 °C	Board Edge, Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Card Extender
EDAC Inc. 896-088-540-212	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Wire Wrap	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.25 mm	Flush Mount, Side Opening, Unthreaded	0.128 "	125 °C	-40 °C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black
EDAC Inc. 896-088-540-802	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Wire Wrap	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold				125 °C	-40 °C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black		3.25 mm	0.128 in
EDAC Inc. 896-088-560-202	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Solder	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.25 mm	Flush Mount, Top Opening, Unthreaded	0.128 "	125 °C	-40 °C	Board Edge, Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Card Extender
EDAC Inc. 896-088-541-202	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Wire Wrap	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.25 mm	Flush Mount, Top Opening, Unthreaded	0.128 "	125 °C	-40 °C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black
EDAC Inc. 896-088-556-202	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Solder	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.25 mm	Flush Mount, Top Opening, Unthreaded	0.128 "	125 °C	-40 °C	Board Edge, Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Card Extender
EDAC Inc. 896-088-560-808	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Solder	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold		4-40, Threaded Insert, Top Mount Opening		125 °C	-40 °C	Board Edge, Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Card Extender
EDAC Inc. 896-088-555-212	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Solder Eyelet(s)	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.25 mm	Flush Mount, Side Opening, Unthreaded	0.128 "	125 °C	-40 °C	Board Edge, Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Card Extender
EDAC Inc. 896-088-541-204	Copper Alloy	Female	Polyphenylene Sulfide (PPS)	Wire Wrap	10 Áin	0.25 Ám	88	2	Cantilever	44	Dual	2	0.125 in	3.18 mm	Non Specified - Dual Edge	Gold	3.96 mm	Flush Mount, Top Opening, Unthreaded	0.156 in	125 °C	-40 °C	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Black
