BK/PCC-3/4
ObsoleteEaton - Electronics Division
FUSE BRD MNT 750MA 250VAC 450VDC
BK/PCC-3/4
ObsoleteEaton - Electronics Division
FUSE BRD MNT 750MA 250VAC 450VDC
Description
General part information
BK/PCC-3/4

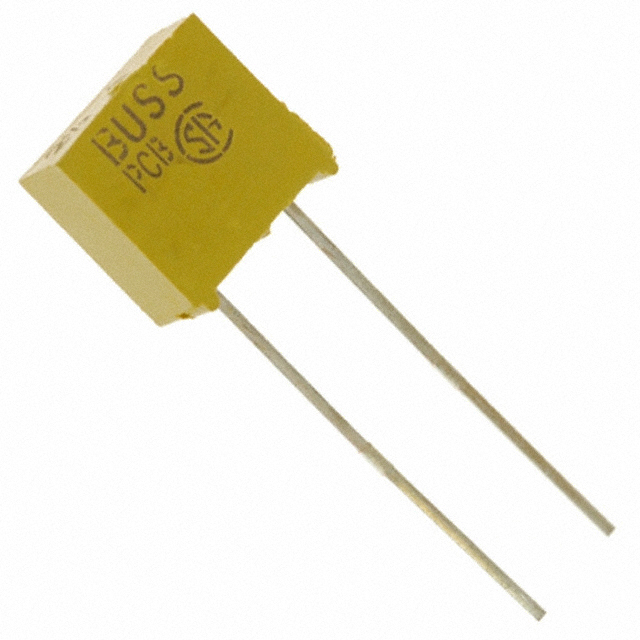

750 mA 250 V AC 450 V DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Technical Specifications
Parameters and characteristics for this part
| Specification | BK/PCC-3/4 |
|---|---|
| Approval Agency | UL, CSA |
| Breaking Capacity (AC) | 50 A |
| Breaking Capacity (DC) | 5.9 kA |
| Current Rating | 0.75 A |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Melting I²t | 0.016 |
| Mounting Type | Through Hole |
| Package / Case | Radial, Box |
| Response Time | Fast Blow |
| Size / Dimension Height | 0.345 in |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.184 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 450 V |
