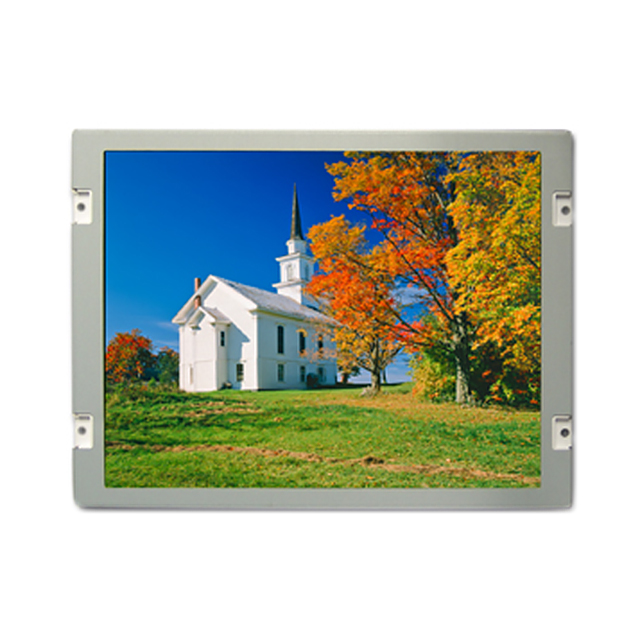

TCG084SVLQAPNN-AN20

Obsolete

Kyocera International, Inc.

DISPLAY SVGA 800 X 600

Search across all available documentation for this part.

Obsolete

Kyocera International, Inc.

DISPLAY SVGA 800 X 600

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 8.4" (213.36mm) 800 x 600 (SVGA)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LCD TFT DISPLAY VGA 8.4"

Part	Backlight	Viewing Area [x]	Viewing Area [y]	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Display Type	Dot Pixels [x]	Dot Pixels [y]	Dot Pitch [x]	Dot Pitch [y]	Display Mode	Interface	Touchscreen
Kyocera International, Inc. TCG084VGLAAAFA-AA00	LED	170.88 mm	128.16 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color	640	480	0.09 mm	0.27 mm	Transmissive
Kyocera International, Inc. TCG084SVLQAPNN-AN20	LED - White	170.4 mm	127.8 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color			0.07 mm	0.21 mm	Transmissive	LVDS
Kyocera International, Inc. TCG084SVLPAANN-AN30	LED - White	170.4 mm	127.8 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color			0.07 mm	0.21 mm	Transmissive	LVDS
Kyocera International, Inc. TCG084SVLQAPFA-AA20	LED	170.4 mm	127.8 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color			0.07 mm	0.21 mm	Transmissive	LVDS	Resistive
Kyocera International, Inc. TCG084SVLPAAFA-AA20	LED	170.4 mm	127.8 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color			0.07 mm	0.21 mm	Transmissive	LVDS
Kyocera International, Inc. TCG084VGLAAAFA-AA50	LED	170.88 mm	128.16 mm	213.36 mm	8.4 in	Blue, Green, Red	TFT - Color	640	480	0.09 mm	0.27 mm	Transmissive
