ATS-CPX054054006-202-Cx-R0

ATS-CPX054054006-202-C3-R0

Active
Advanced Thermal Solutions Inc.

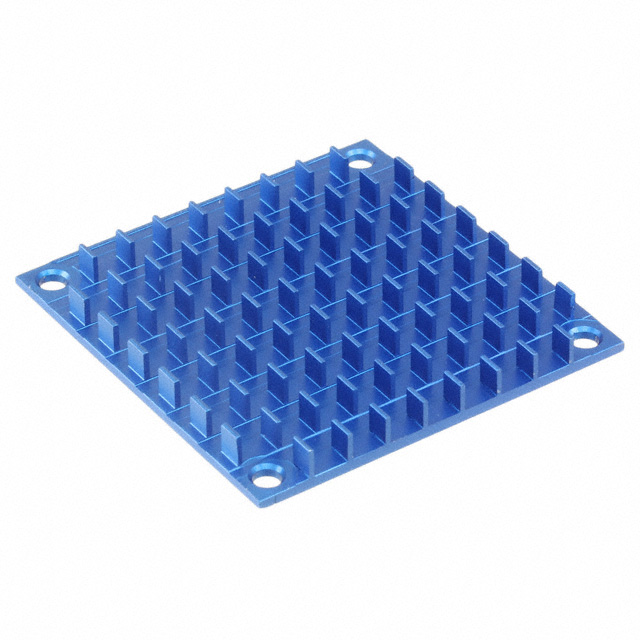

HEAT SINKS PUSHPIN HEAT SINK, COARSE-PITCH, X-CUT, HOLE: 4-CORNER, BLUE ANODIZED, T412

Find alt
ATS-CPX054054006-202-Cx-R0

ATS-CPX054054006-202-C3-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS PUSHPIN HEAT SINK, COARSE-PITCH, X-CUT, HOLE: 4-CORNER, BLUE ANODIZED, T412

Find alt

Description

General part information

ATS-CPX Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-CPX054054006-202-C3-R0
Attachment MethodPush Pin
Fin Height0.236 in
Length2.126 in
MaterialAluminum
Material FinishBlue Anodized
Package CooledASIC...), BGA, ASIC, LGA, CPU, Assorted (BGA
ShapeSquare, Fins
Thermal Resistance14.94 °C/W
TypeTop Mount, Extrusion
Width2.126 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATS-CPX054054006-202-C3-R0 | Datasheet
