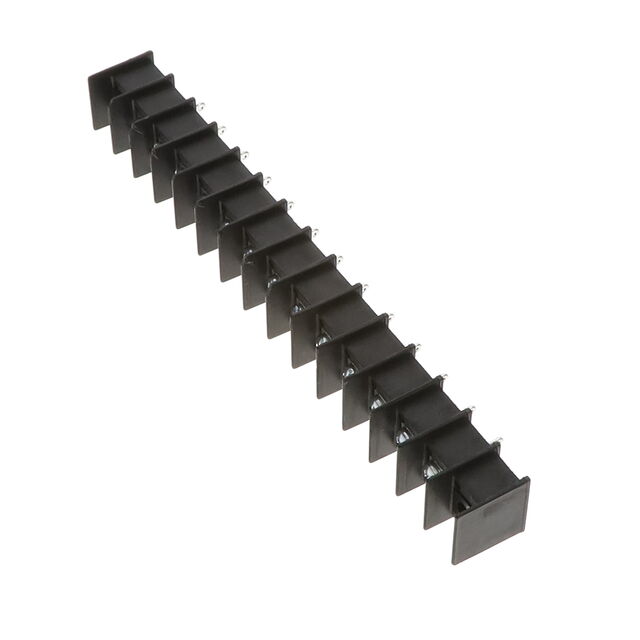

430300-13-0

Active

Curtis Industries

CONN BARRIER STRP 13CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTerminal Blocks Catalog Datasheet

430300-13-0

Active

Curtis Industries

CONN BARRIER STRP 13CIRC 0.438"

Deep-Dive with AI

DocumentsTerminal Blocks Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	430300-13-0	430300 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Quick Connect	Quick Connect
Bottom Termination	0.11 in	0.11 in
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	13	1 - 25
Number of Rows	1	1
Number of Wire Entries	13	4 - 25
Number of Wire Entries	-	1 - 22
Operating Temperature	105 C	105 C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

430300 Series

CONN BARRIER STRP 22CIRC 0.438"

Part	Pitch [x]	Pitch [x]	Top Termination	Bottom Termination	Bottom Termination	Voltage Rating	Number of Circuits	Current Rating (Amps)	Features	Barrier Type	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Mounting Type	Material - Insulation	Number of Rows	Terminal Screw Finish	Terminal Screw Material	Terminal Block Type	Material Flammability Rating	Number of Wire Entries [custom]	Number of Wire Entries
Curtis Industries 430300-22-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	22	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0	22
Curtis Industries 430300-16-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	16	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		16
Curtis Industries 430300-17-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	17	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		17
Curtis Industries 430300-13-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	13	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		13
Curtis Industries 430300-25-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	25	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		25
Curtis Industries 430300-05-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	5	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		5
Curtis Industries 430300-15-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	15	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		15
Curtis Industries 430300-04-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	4	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		4
Curtis Industries 430300-01-0			Screws	Quick Connect	0.11 in	600 V	1	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0	1
Curtis Industries 430300-12-0	11.12 mm	0.438 in	Screws	Quick Connect	0.11 in	600 V	12	20 A	Flange	2 Wall (Dual)	105 C	12 AWG	22 AWG	Chassis, Panel	Polypropylene (PP)	1	Zinc	Steel	Barrier Block	UL94 V-0		12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.17
		10	$ 8.71
		25	$ 8.32
		50	$ 7.48
		100	$ 7.08
		250	$ 6.41
		500	$ 5.97
		1000	$ 5.64

Description

General part information

430300 Series

13 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Terminal Blocks Catalog

Datasheet
