Description
General part information
2478330

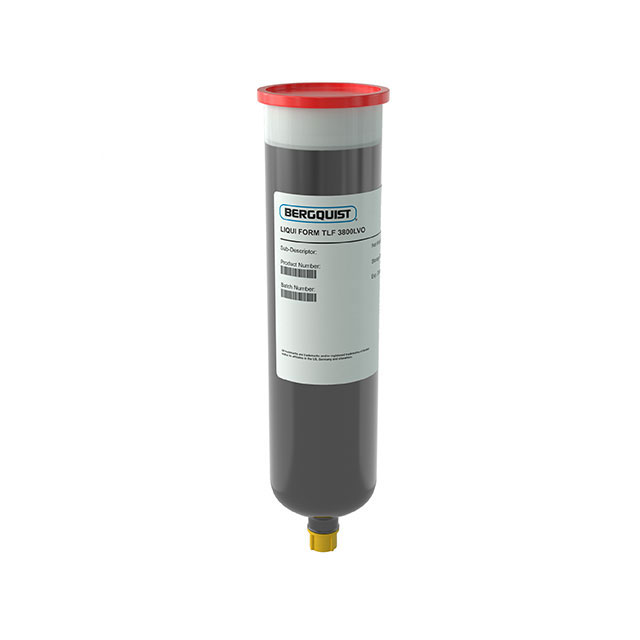

Thermal Silicone Gel 600cc Cartridge
Technical Specifications
Parameters and characteristics for this part
| Specification | 2478330 |
|---|---|
| Color | Gray |
| Material Flammability Rating | UL94 V-0 |
| Shelf Life | 12 Months |
| Shelf Life Start | Date of Manufacture |
| Size / Dimension | Cartridge |
| Size / Dimension Shape | Cartridge |
| Size / Dimension Volume | 600 cc |
| Size / Dimension Weight | 600 cc |
| Storage/Refrigeration Temperature | 77 °F |
| Thermal Conductivity | 3.8 W/m-K |
| Type | Silicone Gel |
| Usable Temperature Range (Max) | 392 °F |
| Usable Temperature Range (Min) | -76 °F |
