PE45498
ActivePasternack

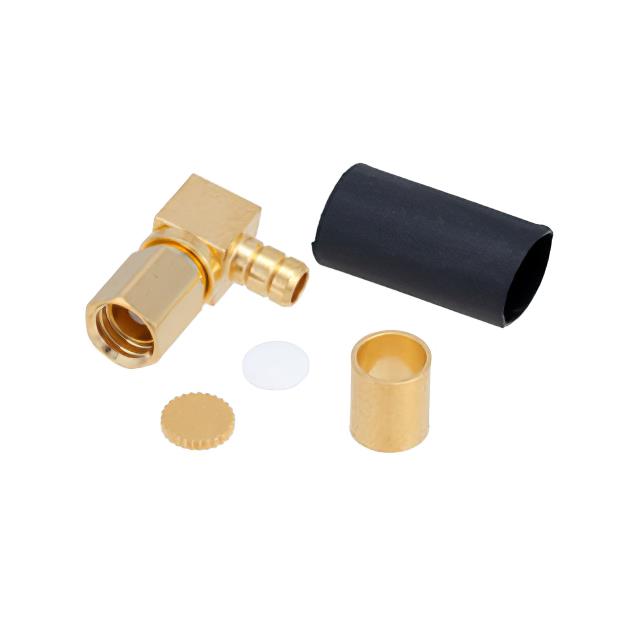

SSMC PLUG RIGHT ANGLE CONNECTOR
PE45498
ActivePasternack
SSMC PLUG RIGHT ANGLE CONNECTOR
Description
General part information
PE45498
SSMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE45498 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group | 316DS, RG-188DS |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Insertion Loss | 0.3 dB |
| Mating Cycles | 500 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 250 V |
