1-929504-7

Active

TE Connectivity AMP Connectors

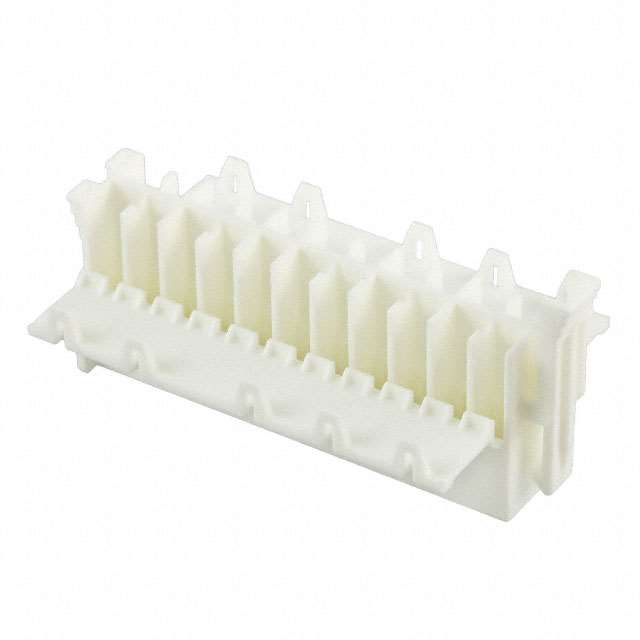

CONN RCPT HSG 22POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 22POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-929504-7	929504 Series

Color	Natural	Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	-	Push-Pull
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	22 positions	8 - 22
Number of Rows	2	2
Operating Temperature	-	100 °C
Operating Temperature	-	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Row Spacing	0.22 in	0.22 in
Row Spacing	5.6 mm	5.6 mm

CONN RCPT HSG 18POS 5.00MM

Part	Contact Termination	Row Spacing	Row Spacing	Note	Pitch [x]	Pitch [x]	Insulation Material	Contact Type	Color	Mounting Type	Connector Type	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type
TE Connectivity AMP Connectors 929504-6	Crimp	0.22 in	5.6 mm	Contacts Not Included	5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Female Socket	Black	Free Hanging (In-Line)	Receptacle	18	2
TE Connectivity AMP Connectors 1-929504-6	Crimp	0.22 in	5.6 mm		5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Female Socket	Natural	Free Hanging (In-Line)	Receptacle	18	2	100 °C	-40 °C	Push-Pull
TE Connectivity AMP Connectors 929504-3	Crimp	0.22 in	5.6 mm	Contacts Not Included	5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Female Socket	Black	Free Hanging (In-Line)	Receptacle	8	2
TE Connectivity AMP Connectors 929504-7	Crimp	0.22 in	5.6 mm	Contacts Not Included	5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Female Socket	Black	Free Hanging (In-Line)	Receptacle	22 positions	2
TE Connectivity AMP Connectors 1-929504-7	Crimp	0.22 in	5.6 mm	Contacts Not Included	5 mm	0.197 in	Polybutylene Terephthalate (PBT)	Female Socket	Natural	Free Hanging (In-Line)	Receptacle	22 positions	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
