1-87232-1

Active

TE Connectivity AMP Connectors

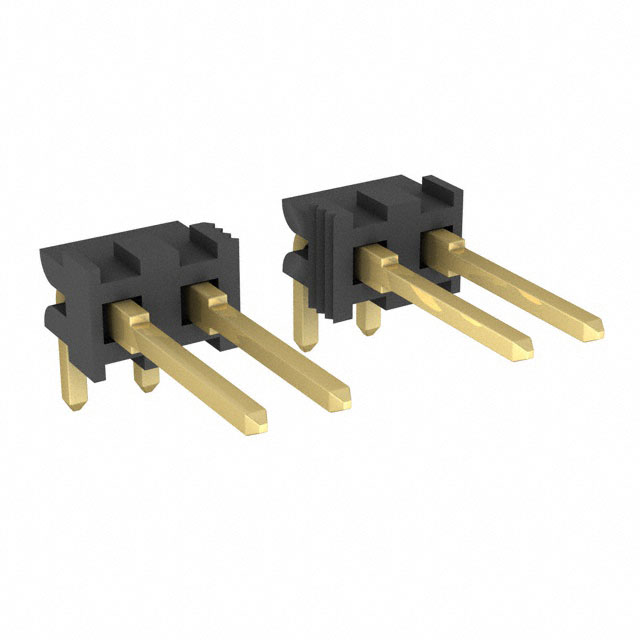

CONN HEADER R/A 11POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-87232-1

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 11POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 5.98

Description

General part information

87232 Series

Connector Header Through Hole, Right Angle 11 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-87232-1	87232 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	3.5 mm	3.5 mm
Insulation Height	0.138 in	0.138 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	11	1 - 20
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87232 Series

CONN HEADER R/A 7POS 2.54MM

Part	Fastening Type	Number of Positions Loaded	Mounting Type	Shrouding	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Style	Current Rating (Amps)	Contact Material	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Shape	Insulation Material	Contact Type	Termination	Connector Type
TE Connectivity AMP Connectors 87232-7	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	7	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 2-87232-0	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	20	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 1-87232-1	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	11	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 87232-9	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	9	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 87232-2	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	2	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 1-87232-0	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	10	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 87232-1	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	1	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0			Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 87232-6	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	6	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 1-87232-2	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in	12	-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
TE Connectivity AMP Connectors 87232-5	Push-Pull	All	Through Hole, Right Angle	Unshrouded	1	30 Áin	0.76 Ám	3.5 mm	0.138 in		-65 ░C	105 ░C	Gold	Board to Board, Cable	3 A	Phosphor Bronze	UL94 V-0	0.1 in	2.54 mm	Flash	Gold	0.11 in	2.79 mm	Black	0.318 "	8.08 mm	Square	Glass Filled, Nylon, Polyamide (PA)	Male Pin	Solder	Header
