ASL1520P
ActiveAC Connectors

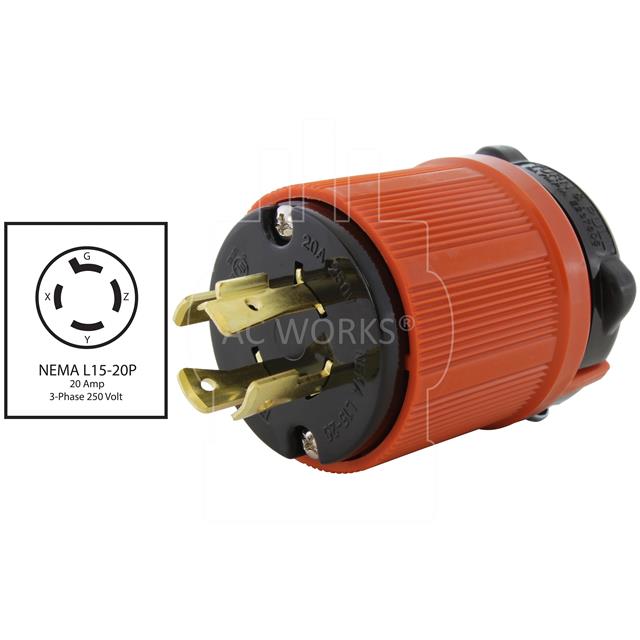

NEMA L15-20 20A 250V MALE PLUG
ASL1520P
ActiveAC Connectors
NEMA L15-20 20A 250V MALE PLUG
Description
General part information
ASL1520P
Power Connector Plug, Male Blades NEMA L15-20P
Technical Specifications
Parameters and characteristics for this part
| Specification | ASL1520P |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA L15-20P |
| Connector Type | Plug, Male Blades |
| Current Rating | 20 A |
| Features | Chemical Resistant, Weather Resistant, Impact Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Termination | Screw |
| Voltage Rating | 250 V |
| Voltage Rating (Maximum) | 250 V |
| Voltage Rating (Minimum) | 250 VAC |
| Voltage Rating (Phase) | 3 Phase |
