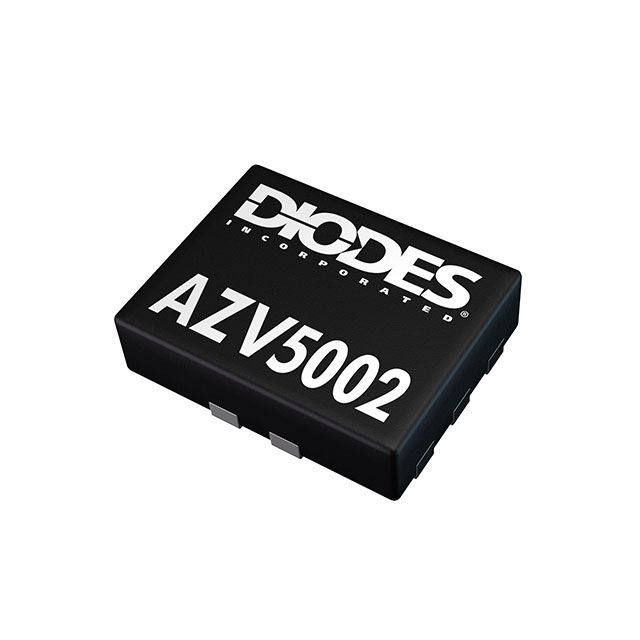

AZV5002DS-7
ActiveLOW POWER AUDIO JACK DETECTOR WITH SEND/END DETECTION IN MINIATURIZED PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
AZV5002DS-7
ActiveLOW POWER AUDIO JACK DETECTOR WITH SEND/END DETECTION IN MINIATURIZED PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AZV5002DS-7 |
|---|---|
| Applications | Consumer Audio |
| Function | Detection Switch |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-UFQFN |
| Supplier Device Package | U-QFN1418-10 |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.83 | |
| Digi-Reel® | 1 | $ 0.83 | ||
| Tape & Reel (TR) | 3000 | $ 0.20 | ||
| 6000 | $ 0.19 | |||
| 9000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 21000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
Description
General part information
AZV5002 Series
The AZV5002 is a low power and cost effective headset detection IC with a comparator with internal hysteresis, OR gate, and N−channel MOSFET integrated designed to detect the assertion of a headset with a microphone. Pull−up resistors for the detection pins are internalized, a built in resistor divider provides the reference voltage for detecting the left audio channel. The logic low output of the OR gate indicates the headset has been connected properly.
