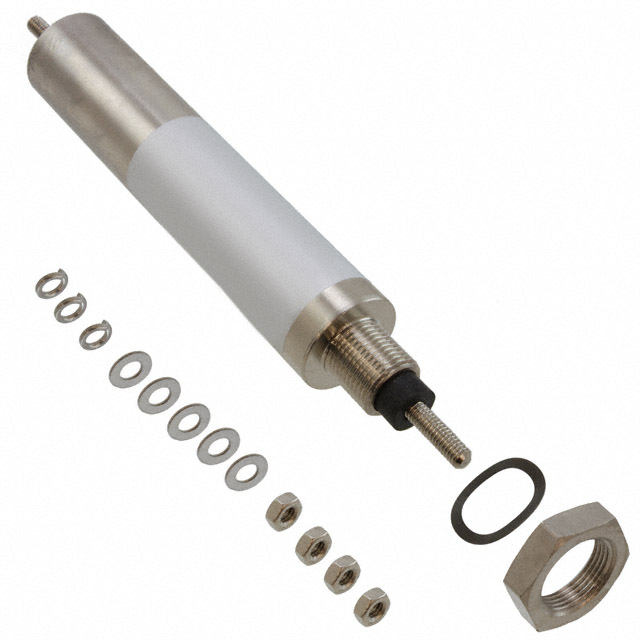

1609993-8

Obsolete

TE Connectivity Corcom Filters

CAP FEEDTHRU 0.1UF 130V AXIAL

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

CAP FEEDTHRU 0.1UF 130V AXIAL

Technical Specifications

Parameters and characteristics for this part

CAP FEEDTHRU 0.1UF 130V AXIAL

Part	DC Resistance (DCR) (Max) [Max]	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Package / Case	Current	Size / Dimension [x]	Size / Dimension [diameter]	Voltage - Rated
TE Connectivity Corcom Filters 1609993-8	8 mOhm	100000 pF	-40 °C	60 °C	M4	Axial - Threaded Terminals	16 A	3.701 in, 94 mm	0.787 in, 20 mm	130 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

0.1 µF Feed Through Capacitor 130V 16 A 8mOhm Axial - Threaded Terminals

Technical documentation and resources
