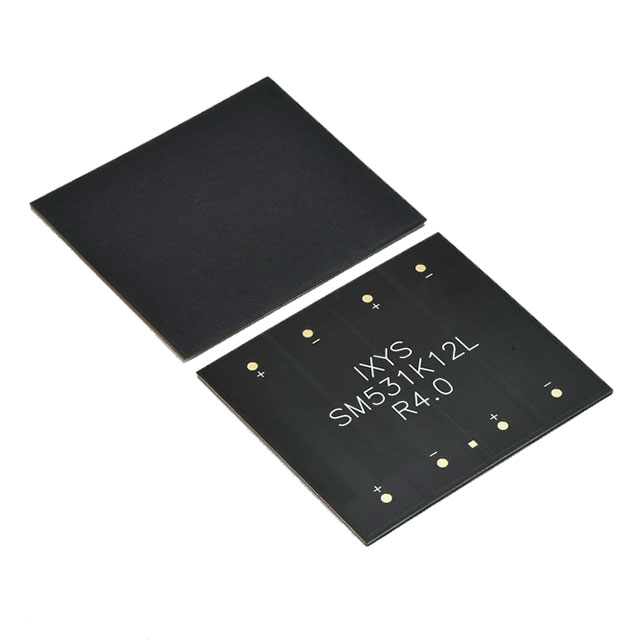

SM531K12L

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 1.37W 8.29V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 1.37W 8.29V

Technical Specifications

Parameters and characteristics commom to parts in this series

MONOCRYST SOLAR CELL 913MW 5.53V

Part	Type	Current @ Pmpp	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Open Circuit	Package / Case	Voltage @ Pmpp [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) - Max [Max]	Current - Short Circuit (Isc)	Voltage @ Pmpp
ANYSOLAR Ltd SM531K08L	Monocrystalline	205 mA	2.047 "	3.504 in	89 mm	1.8 mm	0.071 in	52 mm	5.53 V	Cells	4.46 V	90 °C	-40 °C	913 mW	218 mA
ANYSOLAR Ltd SM531K12L	Monocrystalline	205 mA	3.11 "	3.543 "	90 mm	2 mm	0.079 "	79 mm	8.29 V	Cells		90 °C	-40 °C	1.37 W	218 mA	6.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 1.37 W 8.29 V

Technical documentation and resources

No documents available
