TMC5130A-BOB
ActiveAnalog Devices Inc./Maxim Integrated

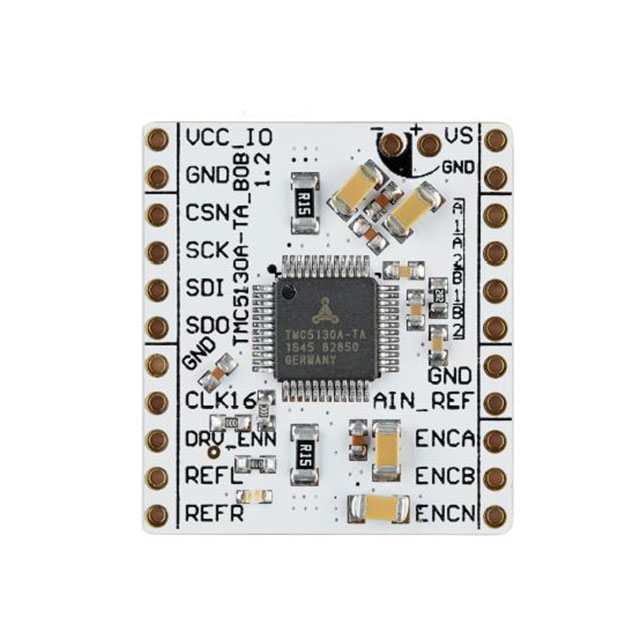

BREAKOUTBOARD WITH TMC5130A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC5130A-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD WITH TMC5130A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC5130A-BOB | TMC5130 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 1.4 A |
| Embedded | - | False |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | RS-232, SPI, Step/Direction |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 48-TQFP Exposed Pad |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Secondary Attributes | SPI Interface(s) | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-TQFP-EP (7x7) |
| Technology | - | Power MOSFET |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC5130A | TMC5130A, TMC5130 |
| Voltage - Load | - | 46 V |
| Voltage - Load | - | 4.75 V |
| Voltage - Supply | - | 46 V |
| Voltage - Supply | - | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.20 | |
TMC5130 Series
IC MTR DRV BIPOLAR 5.5-46V 48QFP
| Part | Supplier Device Package | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Load [Max] | Voltage - Load [Min] | Step Resolution [Max] | Step Resolution [Min] | Interface | Applications | Mounting Type | Motor Type - Stepper | Package / Case | Function | Output Configuration | Secondary Attributes | Contents | Primary Attributes | Utilized IC / Part | Type | Supplied Contents | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC5130A-TA | 48-TQFP-EP (7x7) | 1.4 A | -40 °C | 125 ¯C | Power MOSFET | 46 V | 5.5 V | 46 V | 4.75 V | 1 | 0.00390625 | RS-232, SPI, Step/Direction | General Purpose | Surface Mount | Bipolar | 48-TQFP Exposed Pad | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | |||||||
Analog Devices Inc./Maxim Integrated TMC5130A-BOB | SPI Interface(s) | Board(s) | Motors (Stepper) | TMC5130A | Power Management | Board(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5130A-TA-T | 48-TQFP-EP (7x7) | 1.4 A | -40 °C | 125 ¯C | Power MOSFET | 46 V | 5.5 V | 46 V | 4.75 V | 1 | 0.00390625 | RS-232, SPI, Step/Direction | General Purpose | Surface Mount | Bipolar | 48-TQFP Exposed Pad | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | |||||||
Analog Devices Inc./Maxim Integrated TMC5130-EVAL | SPI Interface(s) | TMC5130 | Power Management | Board(s) |
Description
General part information
TMC5130 Series
TMC5130A Motor Controller/Driver, Stepper Power Management Evaluation Board
Documents
Technical documentation and resources
