008383016000010

Active

KYOCERA AVX

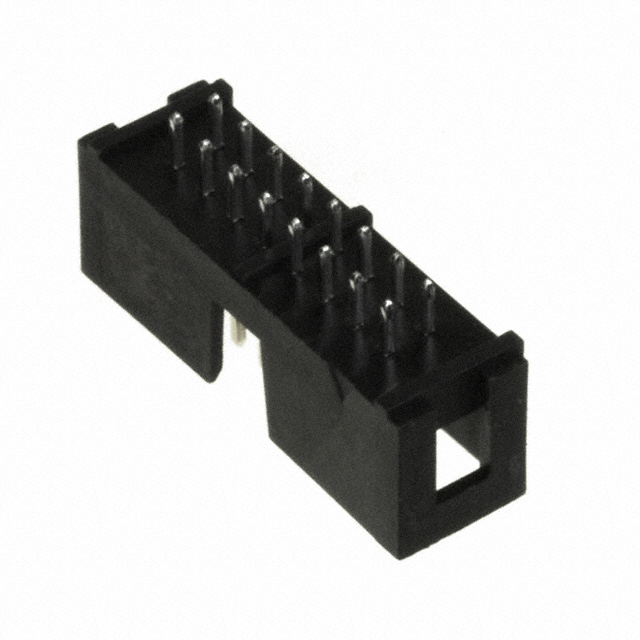

CONN HEADER VERT 16POS 2.54MM

Search across all available documentation for this part.

Active

KYOCERA AVX

CONN HEADER VERT 16POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	008383016000010	008383 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Nickel	Nickel
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Length - Mating	0.242 in	0.242 in
Contact Length - Mating	6.15 mm	6.15 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Beige	Beige
Insulation Height	9.55 mm	9.55 mm
Insulation Height	0.376 in	0.376 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	350 V	350 V

CONN HEADER VERT 16POS 2.54MM

Part	Insulation Color	Mounting Type	Features	Voltage Rating	Contact Finish - Mating	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Termination	Shrouding	Contact Type	Contact Shape	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Rows	Connector Type	Number of Positions
KYOCERA AVX 008383016000010	Beige	Through Hole	Keying Slot	350 V	Gold	Nylon, Polyamide (PA)	0.11 in	2.79 mm	0.1 in	2.54 mm	All	16	0.242 in	6.15 mm	Brass	Nickel	Push-Pull	30 Áin	0.76 Ám	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Male Pin	Square	UL94 V-0	2.54 mm	0.1 in	9.55 mm	0.376 in	2	Header
KYOCERA AVX 008383010000010	Beige	Through Hole	Keying Slot	350 V	Gold	Nylon, Polyamide (PA)	0.11 in	2.79 mm	0.1 in	2.54 mm	All		0.242 in	6.15 mm	Brass	Nickel	Push-Pull	30 Áin	0.76 Ám	Board to Cable/Wire	Solder	Shrouded - 4 Wall	Male Pin	Square	UL94 V-0	2.54 mm	0.1 in	9.55 mm	0.376 in	2	Header	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	5040	$ 1.18

General part information

Connector Header Through Hole 16 position 0.100" (2.54mm)
