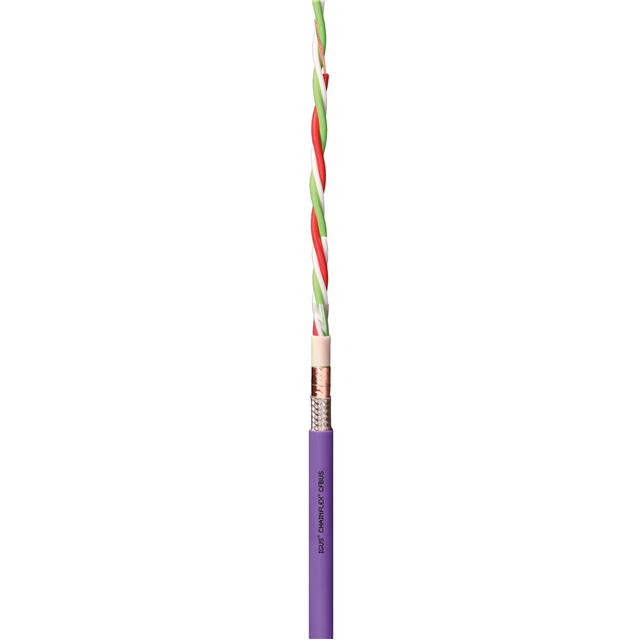

Specification	CFBUS-003

Cable Type	Conductor, Multi
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Features	Flame Retardant, Oil Resistant, Abrasion Resistant
Jacket (Insulation) Diameter	0.453 in
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Violet
Length	Enter Number of Feet in Order Quantity
Number of Conductors	5
Shield Coverage	100%, 90%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Network, Industrial
Voltage	50 V
Wire Gauge	24 AWG, 18 AWG

CFBUS Series

Part	Shield Material	Shield Coverage	Jacket Color	Features	Jacket (Insulation) Diameter	Usage	Conductor Material	Number of Conductors	Shield Type	Conductor Insulation	Wire Gauge	Voltage	Jacket (Insulation) Material	Cable Type	Length	Shield Coverage	Number of Conductors - Pair	Conductor Arrangement
Igus CFBUS-030	Aluminum Copper Tinned	100% 70%	Violet	Flame Retardant Oil Resistant	0.295 in	Industrial	Copper Tinned	4	Braid Foil	Thermoplastic Elastomer (TPE)	22 AWG 24 AWG	50 V	Thermoplastic Elastomer (TPE)	Conductor Multi	Enter Number of Feet in Order Quantity
Igus CFBUS-PVC-060	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.276 in	Industrial	Bare Copper	4	Braid	Thermoplastic Elastomer (TPE)	21 AWG	50 V	Poly-Vinyl Chloride (PVC)	Conductor Multi	Enter Number of Feet in Order Quantity	80 %
Igus CFBUS-010	Aluminum Copper Tinned	100% 70%	Violet	Flame Retardant Oil Resistant	0.354 in	Industrial	Bare Copper	6	Braid Foil	Thermoplastic Elastomer (TPE)	24 AWG	50 V	Thermoplastic Elastomer (TPE)	Multi-Pair	Enter Number of Feet in Order Quantity		3	Twisted
Igus CFBUS-PVC-050	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.394 in	Network	Bare Copper	8	Braid	Thermoplastic Elastomer (TPE)	24 AWG	50 V	Poly-Vinyl Chloride (PVC)	Multi-Pair	Enter Number of Feet in Order Quantity	80 %	4	Twisted
Igus CFBUS-PUR-056	Copper Tinned		Violet	Abrasion Resistant Flame Retardant Oil Resistant	0.354 in	Network	Bare Copper	6	Braid	Thermoplastic Elastomer (TPE)	21 AWG 26 AWG	50 V	Polyurethane (PU)	Conductor Multi	Enter Number of Feet in Order Quantity	80 %		2 2 Twisted Pairs
Igus CFBUS-PUR-001	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.335 in	Industrial	Bare Copper	2	Braid	Thermoplastic Elastomer (TPE)	24 AWG	50 V	Polyurethane (PU)	Conductor Multi	Enter Number of Feet in Order Quantity	80 %
Igus CFBUS-PVC-022	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.335 in	Network	Bare Copper	4	Braid	Thermoplastic Elastomer (TPE)	20 AWG	50 V	Poly-Vinyl Chloride (PVC)	Conductor Multi	Enter Number of Feet in Order Quantity	80 %
Igus CFBUS-PUR-045	Copper Tinned		Violet	Abrasion Resistant Flame Retardant Oil Resistant	0.295 in	Network	Bare Copper	8	Braid	Thermoplastic Elastomer (TPE)	26 AWG	50 V	Polyurethane (PU)	Multi-Pair	Enter Number of Feet in Order Quantity	80 %	4	Twisted
Igus CFBUS-PVC-052	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.374 in	Network	Bare Copper	8	Braid	Thermoplastic Elastomer (TPE)	26 AWG	50 V	Poly-Vinyl Chloride (PVC)	Multi-Pair	Enter Number of Feet in Order Quantity	80 %	4	Twisted
Igus CFBUS-PVC-001	Copper Tinned		Violet	Flame Retardant Oil Resistant	0.335 in	Industrial	Bare Copper	2	Braid	Thermoplastic Elastomer (TPE)	24 AWG	50 V	Poly-Vinyl Chloride (PVC)	Conductor Multi	Enter Number of Feet in Order Quantity	80 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CFBUS-003 | Datasheet
