FSF55MGT-P-10A-X7
ActiveLighthorse Technologies, Inc

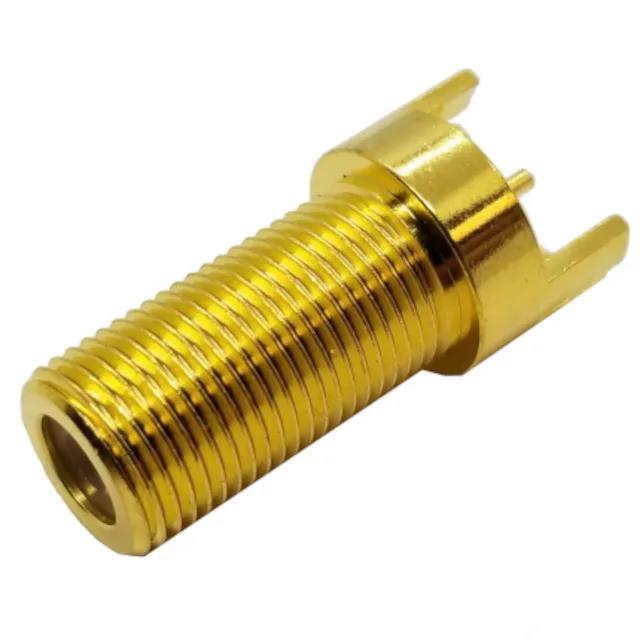

F JACK END LAUNCH PCB 75 OHM
FSF55MGT-P-10A-X7
ActiveLighthorse Technologies, Inc
F JACK END LAUNCH PCB 75 OHM
Description
General part information
FSF55MGT-P-10A-X7
F Type Connector Jack, Female Socket 75 Ohms Board Edge, End Launch Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FSF55MGT-P-10A-X7 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polypropylene (PP), Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Housing Color | Gold |
| Impedance | 75 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | End Launch, Board Edge |
| Number of Ports | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
