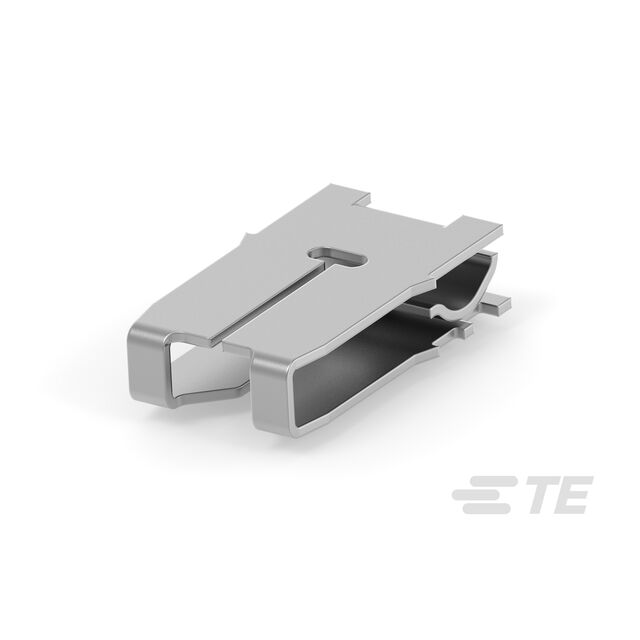

1217358-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 21.5-23AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
1217358-1
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 21.5-23AWG IDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217358-1 |
|---|---|
| Size | 4 |
| Style | 500 |
| Terminal Type | Poke-In Terminal |
| Termination | IDC |
| Wire Gauge [Max] | 23 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.34 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.30 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.19 | |||
| Tape & Reel (TR) | 36000 | $ 0.16 | ||
1217358 Series
CONN MAG TERM 21.5-23AWG IDC
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Type | Size | Termination | Style |
|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217358-1 | 22 AWG | 23 AWG | Poke-In Terminal | 4 | IDC | 500 |
Description
General part information
1217358 Series
Terminal Magnetic Connector 500 21.5-23 AWG IDC
Documents
Technical documentation and resources
