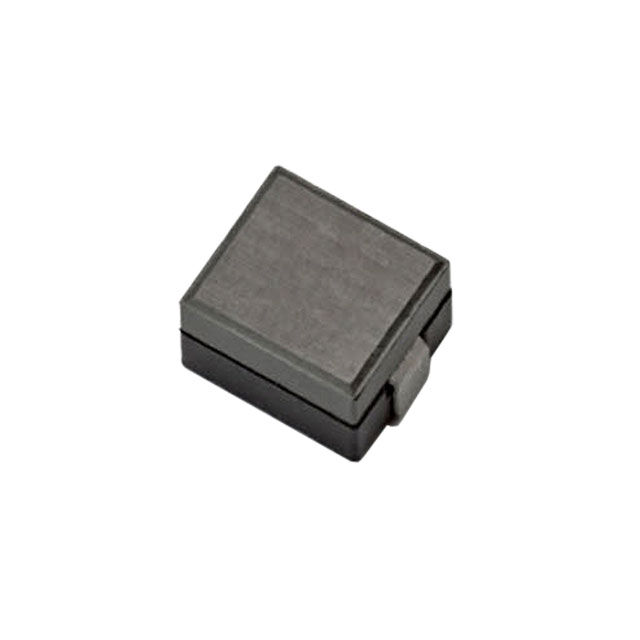

FPV1006-150-R
ActiveEaton - Electronics Division
FIXED IND 150NH 25A 0.41MOHM SMD
FPV1006-150-R
ActiveEaton - Electronics Division
FIXED IND 150NH 25A 0.41MOHM SMD
Description
General part information
FPV1006-150-R
150 nH Shielded Drum Core, Wirewound Inductor 25 A 0.41mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | FPV1006-150-R |
|---|---|
| Current - Saturation (Isat) | 45 A |
| Current Rating | 25 A |
| DC Resistance (DCR) (Max) | 0.41 mOhm |
| Height - Seated (Max) | 0.252 in |
| Inductance | 150 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.382 in |
| Size / Dimension Width | 0.331 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
