EAJ.1B.306.CWA

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EAJ.1B.306.CWA	EAJ.1B Series

Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	7 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	6	6
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	J	J
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	306	306
Shielding	Shielded	Shielded
Termination	-	Solder

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Current Rating (Amps)	Ingress Protection	Shell Finish	Mounting Feature	Color	Contact Material	Orientation	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Fastening Type	Number of Positions	Shell Size - Insert	Primary Material	Shielding	Termination	Mounting Type
LEMO EAJ.1B.306.CWA	7 A	IP50	Chrome	Front and Rear Side Nut	Silver	Brass	J	Gold	Male Pins, Receptacle	-55 °C	250 °C	1 µm	39.4 µin	Brass	Push-Pull	6	306	Metal	Shielded
LEMO EAJ.1B.306.CWD	7 A	IP50	Chrome	Front and Rear Side Nut	Silver	Brass	J	Gold	Male Pins, Receptacle	-55 °C	250 °C	1 µm	39.4 µin	Brass	Push-Pull	6	306	Metal	Shielded	Solder	Panel Mount, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

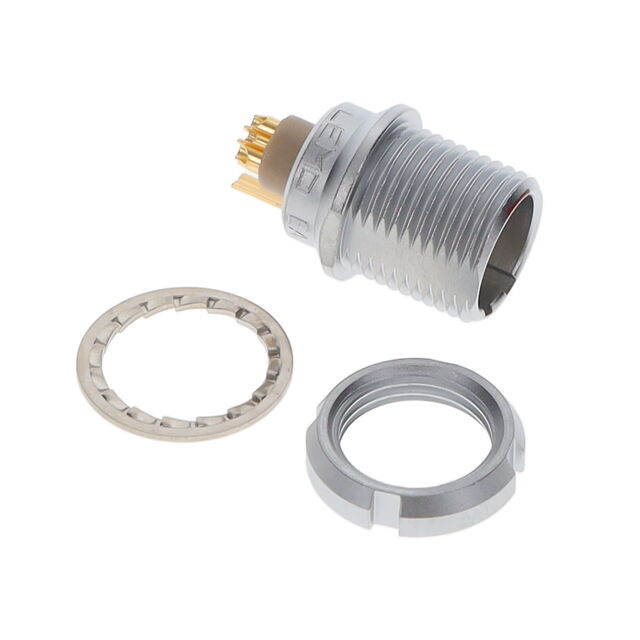

6 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources
