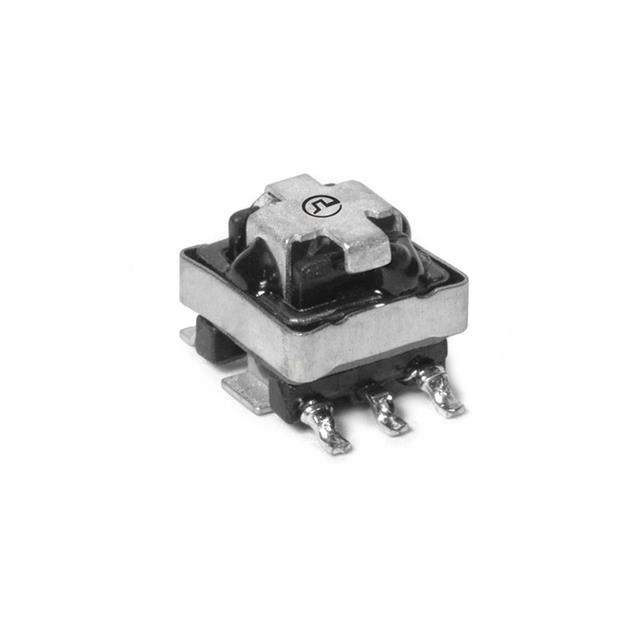

PM2165.050NL
20 A 1:50 Current Sense Transformer 20kHz ~ 1MHz 0.75mOhm Primary, 1.5Ohm Secondary Max 500 µH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PM2165.050NL |
|---|---|
| Current Rating | 20 A |
| DC Resistance (DCR) (Primary) | 0.75 mOhm |
| DC Resistance (DCR) (Secondary Max) | 1.5 Ohm |
| DC Resistance Type | Primary, Secondary Max |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 20 kHz |
| Height - Seated (Max) | 0.217 in |
| Inductance | 500 µH |
| Mounting Type | Surface Mount |
| Ratings | AEC-Q200 |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 50 |
| Type | Invasive |
