Description
General part information

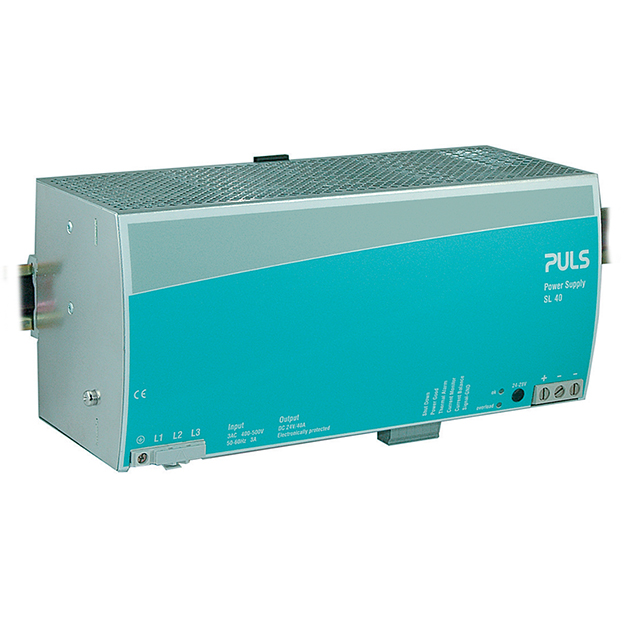

SL40.301
AC/DC DIN RAIL SUPPLY 24V 960W
Technical Specifications
Parameters and characteristics for this part
| Specification | SL40.301 |
|---|---|
| AC Voltage - Input (Max) | 575 VAC |
| AC Voltage - Input (Min) | 340 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, cULus, CB |
| Current - Output (Max) | 40 A |
| Efficiency | 92.6 % |
| Features | Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 960 W |
| Size / Dimension Height | 4.88 in |
| Size / Dimension Length | 4.61 in |
| Size / Dimension Width | 10.83 in |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
