HIP2100IR4ZT

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Search across all available documentation for this part.

Active

Intersil

HALF BRIDGE BASED MOSFET DRIVER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HIP2100IR4ZT	HIP2100 Series

Channel Type	Independent	Independent
Current - Peak Output (Source, Sink) [custom]	2 A	2 A
Current - Peak Output (Source, Sink) [custom]	2 A	2 A
Driven Configuration	Half-Bridge	Half-Bridge
Gate Type	N-Channel MOSFET	N-Channel MOSFET
High Side Voltage - Max (Bootstrap) [Max]	114 V	114 V
Input Type	Non-Inverting	Non-Inverting
Logic Voltage - VIL, VIH	4 V, 7 V	4 - 7 V
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	2	2
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	12-VFDFN Exposed Pad	16-VQFN Exposed Pad, 12-VFDFN Exposed Pad, 8-SOIC
Package / Case	-	0.154 in
Package / Case	-	3.9 mm
Rise / Fall Time (Typ) [custom]	10 ns	10 ns
Rise / Fall Time (Typ) [custom]	10 ns	10 ns
Supplier Device Package	12-DFN (4x4)	16-QFN (5x5), 12-DFN (4x4), 8-SOIC-EP
Voltage - Supply [Max]	14 V	14 V
Voltage - Supply [Min]	9 V	9 V

HALF BRIDGE BASED MOSFET DRIVER

Part	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Mounting Type	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Logic Voltage - VIL, VIH	Number of Drivers	Gate Type	Input Type	Channel Type	Supplier Device Package	Driven Configuration	Package / Case	Package / Case
Intersil HIP2100IR	2 A	2 A	Surface Mount	114 V	10 ns	10 ns	-55 °C	150 °C	16-VQFN Exposed Pad	9 V	14 V	4 V, 7 V	2	N-Channel MOSFET	Non-Inverting	Independent	16-QFN (5x5)	Half-Bridge
Intersil HIP2100IR4ZT	2 A	2 A	Surface Mount	114 V	10 ns	10 ns	-55 °C	150 °C	12-VFDFN Exposed Pad	9 V	14 V	4 V, 7 V	2	N-Channel MOSFET	Non-Inverting	Independent	12-DFN (4x4)	Half-Bridge
Intersil HIP2100EIB	2 A	2 A	Surface Mount	114 V	10 ns	10 ns	-55 °C	150 °C	8-SOIC	9 V	14 V	4 V, 7 V	2	N-Channel MOSFET	Non-Inverting	Independent	8-SOIC-EP	Half-Bridge	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	112	$ 2.69

General part information

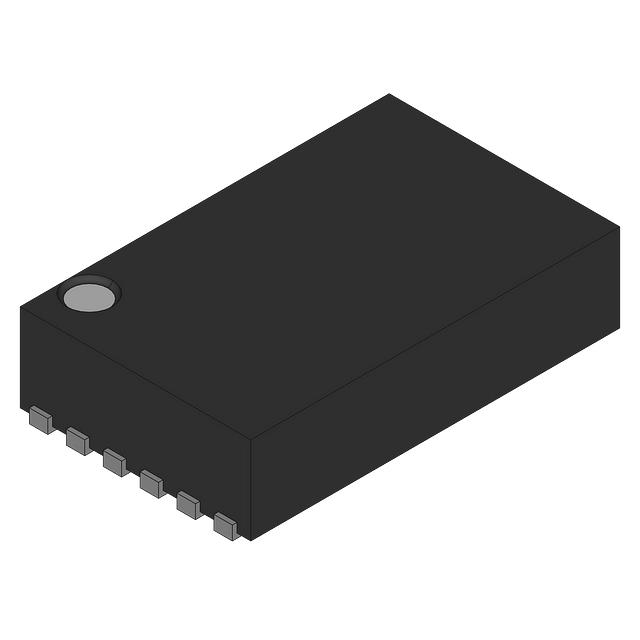

Half-Bridge Gate Driver IC Non-Inverting 12-DFN (4x4)

Technical documentation and resources

No documents available
