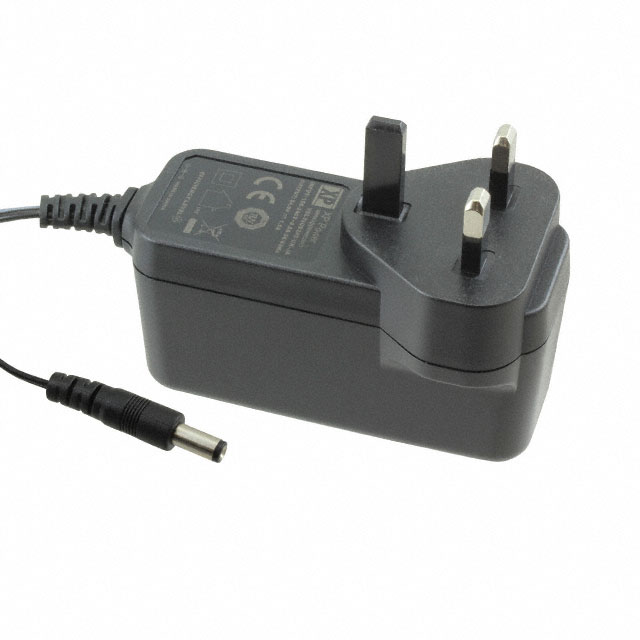

VEL36US150-UK-JA

Active

XP Power

AC/DC WALL MOUNT ADAPTER 15V 36W

Search across all available documentation for this part.

Active

XP Power

AC/DC WALL MOUNT ADAPTER 15V 36W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VEL36US150-UK-JA	VEL36 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CCC	CB, CCC
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	2.4 A	2.4 A
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	GB 1002	NEMA 1-15P, CEE 7/16, GB 1002
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [z]	12 mm	12 mm
Polarization	Positive Center	Positive Center
Power (Watts)	36 W	36 W
Region Utilized	United Kingdom	North America, Europe, United Kingdom
Size / Dimension [x]	3.7 in	3.7 in
Size / Dimension [x]	94 mm	94 mm
Size / Dimension [y]	35 mm	35 mm
Size / Dimension [y]	1.38 "	1.38 "
Size / Dimension [z]	46.6 mm	46.6 mm
Size / Dimension [z]	1.83 in	1.83 in
Standard Number	62368-1	62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	15 VDC	15 VDC
Weight	146.96 g	146.96 - 155.13 g
Weight	0.324 lb	0.324 - 0.342 lb

AC/DC WALL MOUNT ADAPTER 15V 36W

Part	Output Connector	Output Connector [diameter]	Output Connector [z]	No Load Power Consumption [Max]	Polarization	Power (Watts)	Input Type	Approval Agency	Standard Number	Input Connector	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Voltage - Output	Efficiency	Current - Output (Max) [Max]	Applications	Cord Length	Cord Length	Form	Weight	Weight	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
XP Power VEL36US150-US-JA	Barrel Plug	2.1 mm, 5.5 mm	12 mm	75 mW	Positive Center	36 W	Fixed Blade	CB, CCC	62368-1	NEMA 1-15P	90 VAC	264 VAC	North America	15 VDC	CoC Tier 2, Level VI	2.4 A	ITE (Commercial)	1.5 m	59 in	Wall Mount (Class II)	155.13 g	0.342 lb	60 °C
XP Power VEL36US150-EU-JA	Barrel Plug	2.1 mm, 5.5 mm	12 mm	75 mW	Positive Center	36 W	Fixed Blade	CB, CCC	62368-1	CEE 7/16	90 VAC	264 VAC	Europe	15 VDC	CoC Tier 2, Level VI	2.4 A	ITE (Commercial)	1.5 m	59 in	Wall Mount (Class II)	155.13 g	0.342 lb	60 °C	3.7 in	35 mm	94 mm	46.6 mm	1.38 "	1.83 in
XP Power VEL36US150-UK-JA	Barrel Plug	2.1 mm, 5.5 mm	12 mm	75 mW	Positive Center	36 W	Fixed Blade	CB, CCC	62368-1	GB 1002	90 VAC	264 VAC	United Kingdom	15 VDC	CoC Tier 2, Level VI	2.4 A	ITE (Commercial)	1.5 m	59 in	Wall Mount (Class II)	146.96 g	0.324 lb	60 °C	3.7 in	35 mm	94 mm	46.6 mm	1.38 "	1.83 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3000	$ 15.88

General part information

15V 36 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
