A6DR-4100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.03A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6DR-4100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.03A 30V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.17
		10	$ 4.96
		50	$ 4.20
		100	$ 3.92
		250	$ 3.56
		500	$ 3.30
		1000	$ 3.06
		2500	$ 2.78

Description

General part information

A6D Series

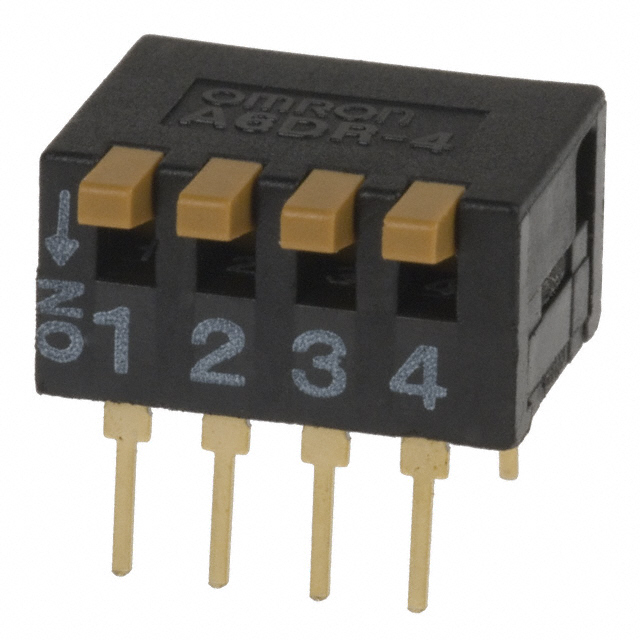

Dip Switch SPST 4 Position Through Hole, Right Angle Piano Actuator 30mA 30VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Specification	A6DR-4100	A6D Series

Actuator Level	Raised	Raised, Flush, Recessed
Actuator Type	Piano	Slide (Standard), Piano
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	30 mA	30 mA
Electrical Life	2000 Steps	2000 Steps
Features	IP64 - Dust Tight, Water Resistant	IP64 - Dust Tight, Water Resistant
Height Above Board	0.292 in	0.173 - 0.292 in
Height Above Board	7.41 mm	4.4 - 7.41 mm
Length	0.479 in	0.379 - 1.079 in
Length	12.17 mm	9.63 - 27.41 mm
Length	-	7.1 - 24.87 mm
Length	-	0.279 - 0.979 in
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Number of Positions	4	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	30 VDC	30 VDC
Washable	True	True

Part

Circuit

Actuator Type

Pitch [x]

Pitch

Pitch [x]

Operating Temperature [Min]

Operating Temperature [Max]

Current Rating (Amps)

Washable

Termination Style

Voltage Rating

Number of Positions

Length [x]

Actuator Level

Features

Height Above Board

Mounting Type

Electrical Life

Contact Finish

Length

Omron Electronics Inc-EMC Div

A6D-9103

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

24.87 mm

0.979 in

Raised

IP64 - Dust Tight, Water Resistant

0.213 in

5.4 mm

Through Hole

2000 Steps

Gold

Omron Electronics Inc-EMC Div

A6D-4103

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

Raised

IP64 - Dust Tight, Water Resistant

0.213 in

5.4 mm

Through Hole

2000 Steps

Gold

0.479 in

12.17 mm

Omron Electronics Inc-EMC Div

A6DR-2100

SPST

Piano

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

7.1 mm

0.279 "

Raised

IP64 - Dust Tight, Water Resistant

0.292 in

7.41 mm

Through Hole, Right Angle

2000 Steps

Gold

Omron Electronics Inc-EMC Div

A6D-7103

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

19.79 mm

0.779 in

Raised

IP64 - Dust Tight, Water Resistant

0.213 in

5.4 mm

Through Hole

2000 Steps

Gold

Omron Electronics Inc-EMC Div

A6D-0100

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

Flush, Recessed

IP64 - Dust Tight, Water Resistant

0.173 in

4.4 mm

Through Hole

2000 Steps

Gold

1.079 in

27.41 mm

Omron Electronics Inc-EMC Div

A6D-5103

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

Raised

IP64 - Dust Tight, Water Resistant

0.213 in

5.4 mm

Through Hole

2000 Steps

Gold

0.579 "

14.7 mm

Omron Electronics Inc-EMC Div

A6D-8100

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

22.33 mm

0.879 "

Flush, Recessed

IP64 - Dust Tight, Water Resistant

0.173 in

4.4 mm

Through Hole

2000 Steps

Gold

Omron Electronics Inc-EMC Div

A6D-3103

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

Raised

IP64 - Dust Tight, Water Resistant

0.213 in

5.4 mm

Through Hole

2000 Steps

Gold

0.379 in

9.63 mm

Omron Electronics Inc-EMC Div

A6D-3100

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

Flush, Recessed

IP64 - Dust Tight, Water Resistant

0.173 in

4.4 mm

Through Hole

2000 Steps

Gold

0.379 in

9.63 mm

Omron Electronics Inc-EMC Div

A6D-2100

SPST

Slide (Standard)

0.1 in

Full

2.54 mm

-20 C

70 °C

30 mA

PC Pin

30 VDC

7.1 mm

0.279 "

Flush, Recessed

IP64 - Dust Tight, Water Resistant

0.173 in

4.4 mm

Through Hole

2000 Steps

Gold

Part	Circuit	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Voltage Rating	Number of Positions	Length [x]	Length [x]	Actuator Level	Features	Height Above Board	Height Above Board	Mounting Type	Electrical Life	Contact Finish	Length	Length
Omron Electronics Inc-EMC Div A6D-9103	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	9	24.87 mm	0.979 in	Raised	IP64 - Dust Tight, Water Resistant	0.213 in	5.4 mm	Through Hole	2000 Steps	Gold
Omron Electronics Inc-EMC Div A6D-4103	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	4			Raised	IP64 - Dust Tight, Water Resistant	0.213 in	5.4 mm	Through Hole	2000 Steps	Gold	0.479 in	12.17 mm
Omron Electronics Inc-EMC Div A6DR-2100	SPST	Piano	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	2	7.1 mm	0.279 "	Raised	IP64 - Dust Tight, Water Resistant	0.292 in	7.41 mm	Through Hole, Right Angle	2000 Steps	Gold
Omron Electronics Inc-EMC Div A6D-7103	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	7	19.79 mm	0.779 in	Raised	IP64 - Dust Tight, Water Resistant	0.213 in	5.4 mm	Through Hole	2000 Steps	Gold
Omron Electronics Inc-EMC Div A6D-0100	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	10			Flush, Recessed	IP64 - Dust Tight, Water Resistant	0.173 in	4.4 mm	Through Hole	2000 Steps	Gold	1.079 in	27.41 mm
Omron Electronics Inc-EMC Div A6D-5103	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC				Raised	IP64 - Dust Tight, Water Resistant	0.213 in	5.4 mm	Through Hole	2000 Steps	Gold	0.579 "	14.7 mm
Omron Electronics Inc-EMC Div A6D-8100	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	8	22.33 mm	0.879 "	Flush, Recessed	IP64 - Dust Tight, Water Resistant	0.173 in	4.4 mm	Through Hole	2000 Steps	Gold
Omron Electronics Inc-EMC Div A6D-3103	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC				Raised	IP64 - Dust Tight, Water Resistant	0.213 in	5.4 mm	Through Hole	2000 Steps	Gold	0.379 in	9.63 mm
Omron Electronics Inc-EMC Div A6D-3100	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC				Flush, Recessed	IP64 - Dust Tight, Water Resistant	0.173 in	4.4 mm	Through Hole	2000 Steps	Gold	0.379 in	9.63 mm
Omron Electronics Inc-EMC Div A6D-2100	SPST	Slide (Standard)	0.1 in	Full	2.54 mm	-20 C	70 °C	30 mA	PC Pin	30 VDC	2	7.1 mm	0.279 "	Flush, Recessed	IP64 - Dust Tight, Water Resistant	0.173 in	4.4 mm	Through Hole	2000 Steps	Gold
