74-4SGL800MA
ActiveNTE Electronics, Inc

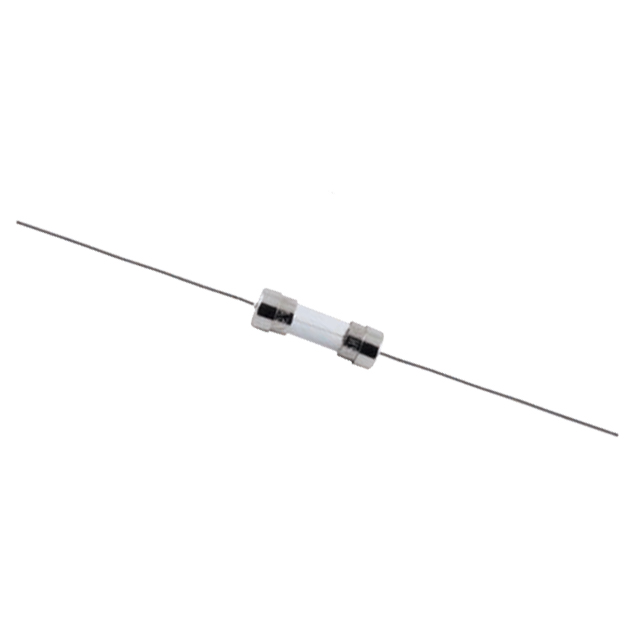

FUSE GLASS 800MA 250VAC 2AG
74-4SGL800MA
ActiveNTE Electronics, Inc
FUSE GLASS 800MA 250VAC 2AG
Description
General part information
74-4SGL800MA
800 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 2AG, 5mm x 15mm (Axial)
Technical Specifications
Parameters and characteristics for this part
| Specification | 74-4SGL800MA |
|---|---|
| Approval Agency | cUL, UL |
| Breaking Capacity | 50 A |
| Current Rating | 800 mA |
| Fuse Type | Cartridge, Glass |
| Mounting Type | Through Hole |
| Package / Case | 5mm x 15mm (Axial), 2AG |
| Package Features | Axial |
| Package Length | 5 mm |
| Package Name | 2AG |
| Package Width | 15 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.63 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
