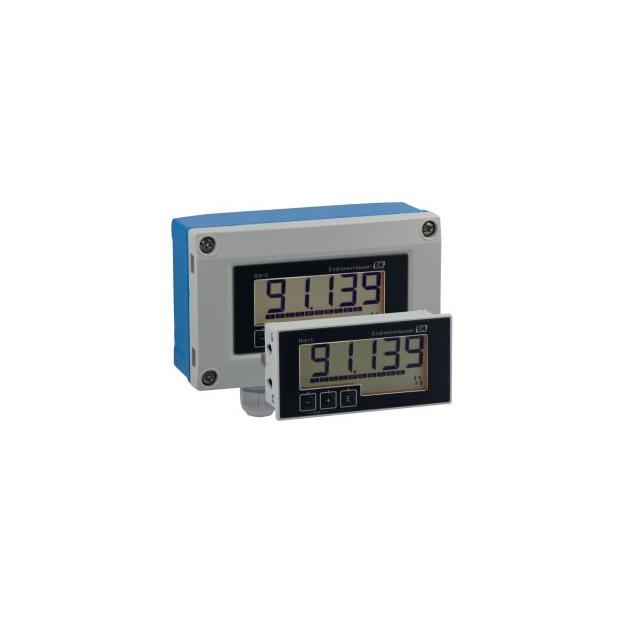

RIA15-AAA1

Active

Endress+Hauser

DISPLAY PANEL 4-20MA

Search across all available documentation for this part.

Active

Endress+Hauser

DISPLAY PANEL 4-20MA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RIA15-AAA1	RIA15 Series

Display Characters - Height [z]	0.669 in	0.669 in
Display Characters - Height [z]	17 mm	17 mm
Display Type	LCD - Black Characters, Backlight	LCD - Black Characters, Backlight
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Measuring Type	Current	Current
Mounting Type	DIN Rail	DIN Rail
Number of Characters Per Row	5	5
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	91.95 mm	91.95 mm
Panel Cutout Dimensions [y]	44.96 mm	44.96 mm
Termination Style	Connector	Connector
Type	Ammeter	Ammeter
Voltage - Supply	Loop Power	Loop Power
Voltage - Supply	-	2.9 VDC
Voltage - Supply	-	1.9 VDC

DISPLAY PANEL 4-20MA

Part	Voltage - Supply	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Min]	Operating Temperature [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Ingress Protection	Termination Style	Type	Display Type	Mounting Type	Number of Characters Per Row	Measuring Type	Voltage - Supply [Max]	Voltage - Supply [Min]
Endress+Hauser RIA15-AAA1	Loop Power	91.95 mm	44.96 mm	-40 °C	60 °C	0.669 in	17 mm	IP65 - Dust Tight, Water Resistant	Connector	Ammeter	LCD - Black Characters, Backlight	DIN Rail	5	Current
Endress+Hauser RIA15-AAA2		91.95 mm	44.96 mm	-40 °C	60 °C	0.669 in	17 mm	IP65 - Dust Tight, Water Resistant	Connector	Ammeter	LCD - Black Characters, Backlight	DIN Rail	5	Current	2.9 VDC	1.9 VDC
Endress+Hauser RIA15-AAB1	Loop Power	91.95 mm	44.96 mm	-40 °C	60 °C	0.669 in	17 mm	IP65 - Dust Tight, Water Resistant	Connector	Ammeter	LCD - Black Characters, Backlight	DIN Rail	5	Current

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 280.09

General part information

Ammeter LCD - Black Characters, Backlight Display DIN Rail
