050R10-102B

Active

Parlex USA LLC

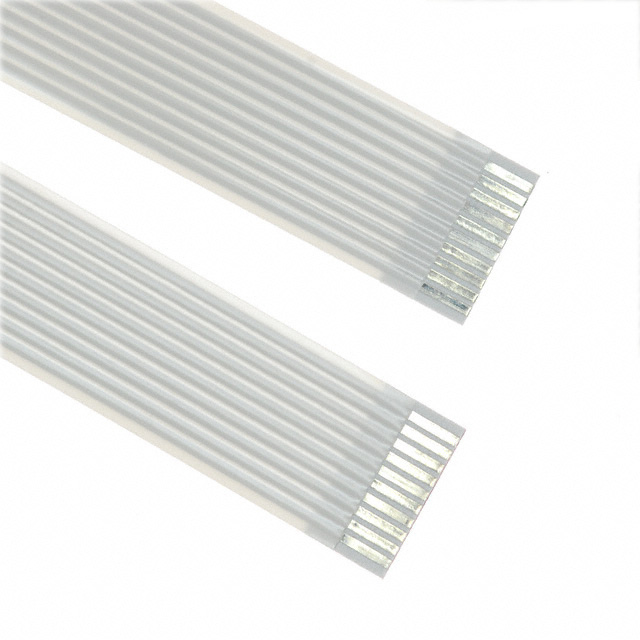

CABLE FFC/FPC 10POS 0.5MM 4"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 10POS 0.5MM 4"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)

Technical documentation and resources

Specification	050R10-102B	050R10 Series

Cable Type	FPC, FFC	FPC, FFC
Length	4 in	2 - 4 in
Length	101.6 mm	50.8 - 101.6 mm
Length	-	5.984 in
Length	-	152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	10	10
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

Part	Pitch [x]	Pitch [x]	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Cable Type	Number of Conductors	Length [x]	Length [x]	Length	Length
Parlex USA LLC 050R10-152B	0.5 mm	0.02 in	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	10	5.984 in	152 mm
Parlex USA LLC 050R10-76B	0.5 mm	0.02 in	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	10			3 in	76.2 mm
Parlex USA LLC 050R10-51B	0.5 mm	0.02 in	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	10			2 in	50.8 mm
Parlex USA LLC 050R10-102B	0.5 mm	0.02 in	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	FFC, FPC	10			4 in	101.6 mm
