Description
General part information
FMC0248085-06

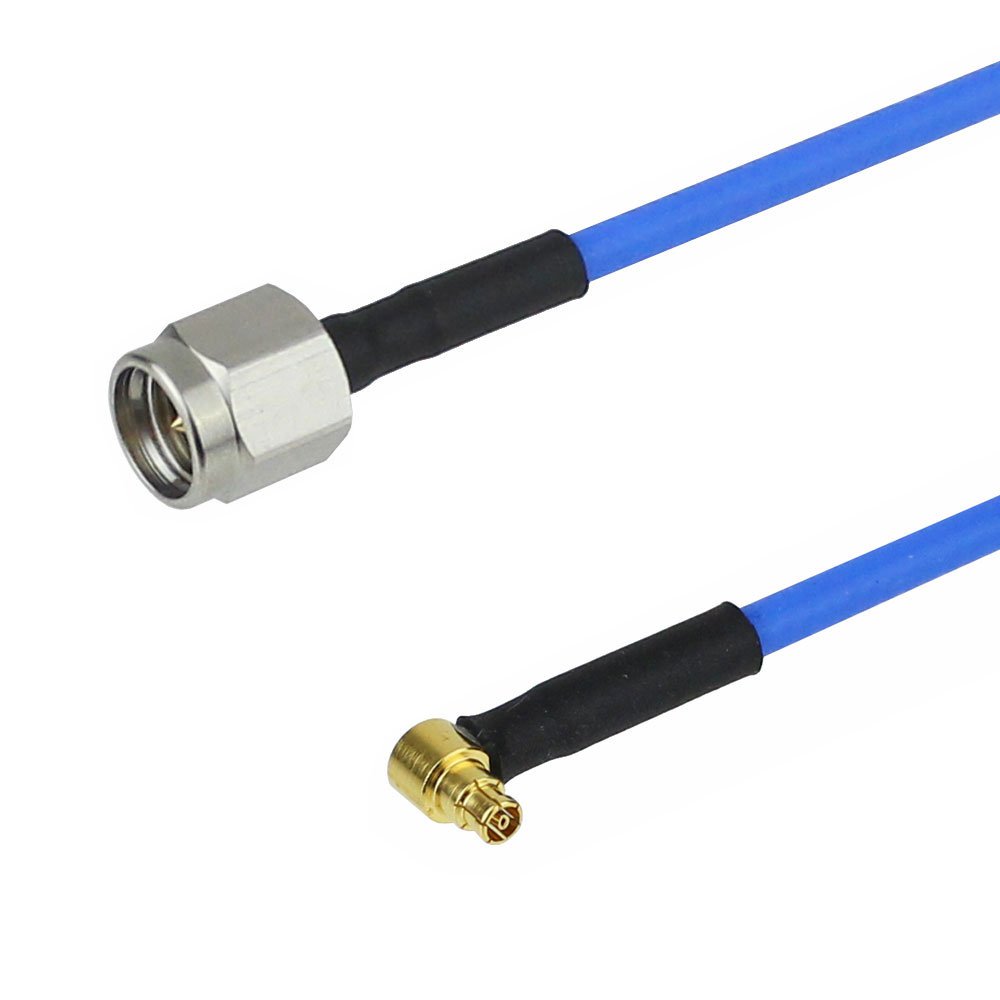

Cable Assembly Coaxial SMA to Mini SMP Hand Formable .047 6.000" (152.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0248085-06 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, Mini SMP Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 0.5 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | Mini SMP, SMA |
