Description
General part information
147-0701-411

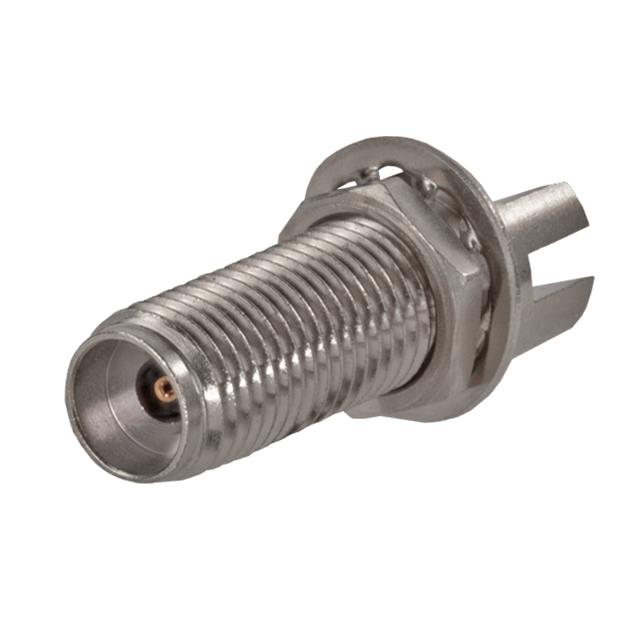

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, End Launch; Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 147-0701-411 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Plug Diameter | 2.4 mm |
| Connector Style | APC-2.4, OS-50 |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 50 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Board Edge, End Launch, Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Solder |
| Voltage Rating | 150 VDC |
