PBC36DBCN

Active

Sullins Connector Solutions

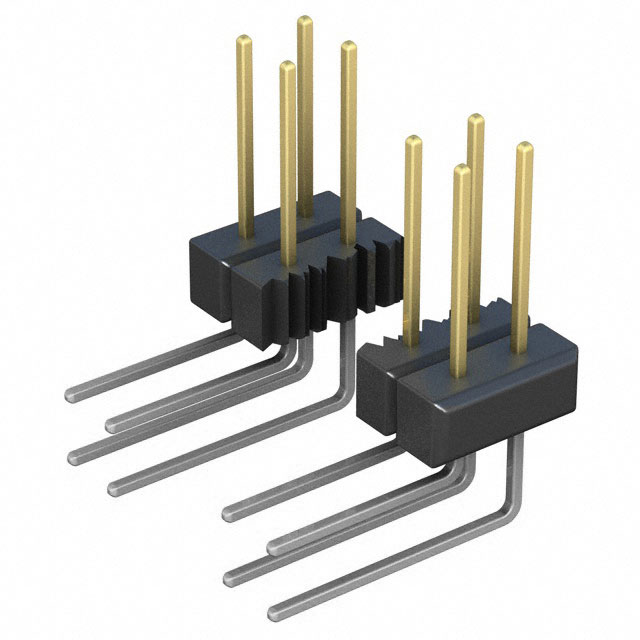

CONN HEADER R/A 72POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC36DBCN

Active

Sullins Connector Solutions

CONN HEADER R/A 72POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC36DBCN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	7.62 mm
Contact Length - Post [x]	0.3 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC36 Series

Part	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Insulation Material	Overall Contact Length	Overall Contact Length	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Type	Termination	Number of Positions Loaded	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Style	Mounting Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Current Rating (Amps)	Contact Shape	Insulation Height	Insulation Height	Overall Contact Length	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PBC36DFBN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)	16.21 mm	0.638 in	Phosphor Bronze	2.54 µm	100 µin	Breakaway Header	0.22 in	5.58 mm	10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole	0.318 "	8.08 mm	3 A	Square	0.1 in	2.54 mm
Sullins Connector Solutions PBC36DACN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)	0.65 in		Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole	0.23 in		3 A	Square	0.1 in	2.54 mm	16.51 mm	5.84 mm	0.32 in	8.13 mm
Sullins Connector Solutions PBC36SBEN	Black	Tin	Gold	1	Polybutylene Terephthalate (PBT)			Phosphor Bronze	2.54 µm	100 µin	Breakaway Header	0.5 in	12.7 mm	10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded			36	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole Right Angle	0.23 in		3 A	Square	0.14 in	3.56 mm		5.84 mm
Sullins Connector Solutions PBC36SBCN	Black	Tin	Gold	1	Polybutylene Terephthalate (PBT)			Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded			36	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole Right Angle	0.23 in		3 A	Square	0.14 in	3.56 mm		5.84 mm	0.3 "	7.62 mm
Sullins Connector Solutions PBC36DBDN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)			Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole Right Angle	0.23 in		3 A	Square	0.24 in	6.1 mm		5.84 mm	0.4 in	10.16 mm
Sullins Connector Solutions PBC36DBCN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)			Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole Right Angle	0.23 in		3 A	Square	0.24 in	6.1 mm		5.84 mm	0.3 "	7.62 mm
Sullins Connector Solutions PBC36SACN	Black	Tin	Gold	1	Polybutylene Terephthalate (PBT)	0.65 in		Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded			36	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole	0.23 in		3 A	Square	0.1 in	2.54 mm	16.51 mm	5.84 mm	0.32 in	8.13 mm
Sullins Connector Solutions PBC36DADN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)	19.05 mm	0.75 in	Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole	0.23 in		3 A	Square	0.1 in	2.54 mm		5.84 mm	0.42 in	10.67 mm
Sullins Connector Solutions PBC36SBDN	Black	Tin	Gold	1	Polybutylene Terephthalate (PBT)			Phosphor Bronze	2.54 µm	100 µin	Breakaway Header			10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded			36	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole Right Angle	0.23 in		3 A	Square	0.14 in	3.56 mm		5.84 mm	0.4 in	10.16 mm
Sullins Connector Solutions PBC36DFEN	Black	Tin	Gold	2	Polybutylene Terephthalate (PBT)	23.83 mm	0.938 in	Phosphor Bronze	2.54 µm	100 µin	Breakaway Header	0.52 "	13.21 mm	10 çin	0.25 çm	0.1 in	2.54 mm	Unshrouded	2.54 mm	0.1 in	72	Male Pin	Solder	All	UL94 V-0	125 °C	-65 ░C	Push-Pull	Board to Board Cable	Through Hole	0.318 "	8.08 mm	3 A	Square	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.07

Description

General part information

PBC36 Series

Connector Header Through Hole, Right Angle 72 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
