S-1142BA9I-E6T1U

Active

ABLIC Inc.

IC REG LINEAR 10.9V 200MA 6-HSOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

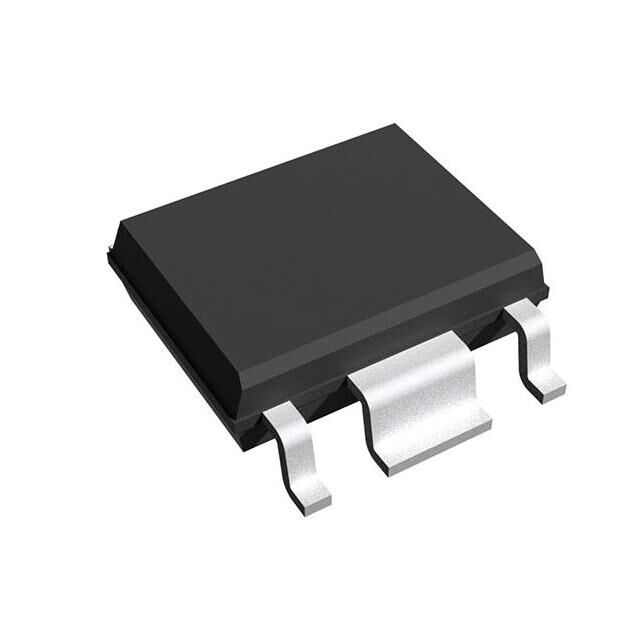

S-1142BA9I-E6T1U

Active

ABLIC Inc.

IC REG LINEAR 10.9V 200MA 6-HSOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S-1142BA9I-E6T1U	S-1142 Series

Control Features	Enable	Enable
Current - Output	200 mA	200 mA
Current - Quiescent (Iq)	1 µA	1 - 2.5 µA
Current - Supply (Max)	9 µA	9 µA
Mounting Type	Surface Mount	Surface Mount
Number of Regulators	1	1
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	0.154 in, 3.9 mm	0.154 - 3.9 in
Package / Case [custom]	6-SOIC Variation	6-SOIC Variation
Package / Case [custom]	4	4
Package / Case [custom]	2	2
Protection Features	Over Current, Thermal Shutdown	Over Current, Thermal Shutdown
PSRR	30 dB	30 - 50 db
Voltage - Input (Max) [Max]	50 V	50 V
Voltage - Output (Min/Fixed)	10.9 V	2.1 - 15 V
Voltage - Output (Min/Fixed)	-	2 - 5.1 V
Voltage Dropout (Max) [Max]	0.4 V	0.4 - 1.12 V

S-1142 Series

IC REG LINEAR 9V 200MA 6HSOP

...

Part	Current - Supply (Max)	PSRR	Protection Features	Package / Case [custom]	Package / Case	Package / Case [custom]	Package / Case [custom]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Input (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)	Mounting Type	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Current - Output	Number of Regulators	Voltage - Output (Min/Fixed) [Min]
ABLIC Inc. S-1142D90I-E6T1U	9 µA	35 db	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	9 V	Surface Mount	1 µA	0.4 V	200 mA	1
ABLIC Inc. S-1142AC5H-E6T2U	9 µA	30 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	105 °C	-40 °C	Enable	50 V	1.81 mOhm	12.5 V	Surface Mount	2.5 µA	0.4 V	200 mA	1
ABLIC Inc. S-1142A33I-E6T1U	9 µA	45 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	3.3 V	Surface Mount	1 µA	0.72 V	200 mA	1
ABLIC Inc. S-1142D40H-E6T2U	9 µA	40 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	105 °C	-40 °C	Enable	50 V	1.81 mOhm	4 V	Surface Mount	2.5 µA	0.55 V	200 mA	1
ABLIC Inc. S-1142B20H-E6T2U	9 µA	50 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	105 °C	-40 °C	Enable	50 V	1.81 mOhm		Surface Mount	2.5 µA	1.12 V	200 mA	1	2 V
ABLIC Inc. S-1142B57I-E6T1U	9 µA	40 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	5.7 V	Surface Mount	1 µA	0.5 V	200 mA	1
ABLIC Inc. S-1142B87H-E6T2U	9 µA	35 db	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	105 °C	-40 °C	Enable	50 V	1.81 mOhm	8.7 V	Surface Mount	2.5 µA		200 mA	1
ABLIC Inc. S-1142D2JI-E6T1U	9 µA	45 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	2.85 V	Surface Mount	1 µA	0.82 V	200 mA	1
ABLIC Inc. S-1142D33A-E6T2U	9 µA	45 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	3.3 V	Surface Mount	1 µA	0.72 V	200 mA	1
ABLIC Inc. S-1142D37I-E6T1U	9 µA	40 dB	Over Current, Thermal Shutdown	6-SOIC Variation	0.154 in, 3.9 mm	4	2	Positive	85 °C	-40 °C	Enable	50 V	1.81 mOhm	3.7 V	Surface Mount	1 µA	0.62 V	200 mA	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.62
		4000	$ 0.57
		6000	$ 0.57

Description

General part information

S-1142 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 6-HSOP

Documents

Technical documentation and resources
