Description

General part information

PE44646I

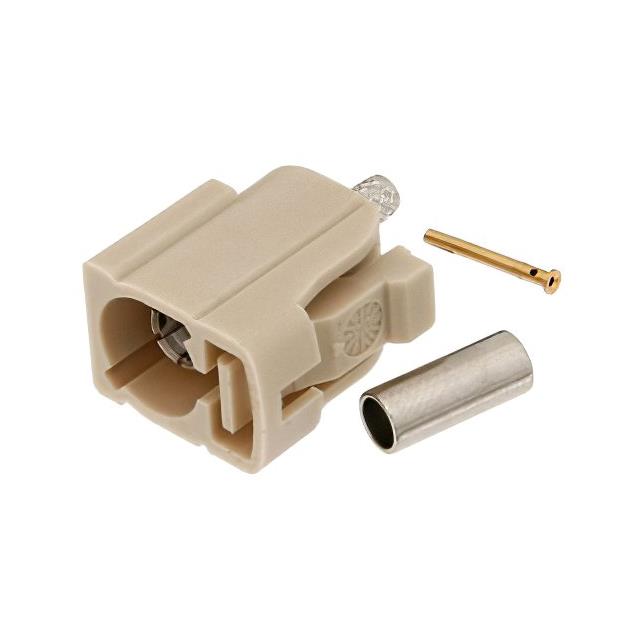

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical Specifications

Parameters and characteristics for this part

SpecificationPE44646I
Body FinishNickel
Body MaterialBrass
Cable Group316, LMR-100, 188, RG-174
Center Contact MaterialPhosphor Bronze
Center Contact PlatingGold
Connector StyleFakra, SMB
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeLatch Lock
FeaturesCode I
Frequency - Max4 GHz
Housing ColorBeige
Impedance50 Ohm
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Shield TerminationCrimp
Voltage Rating335 V
