VLD2UHH1-00000-000

Active

Carling Technologies

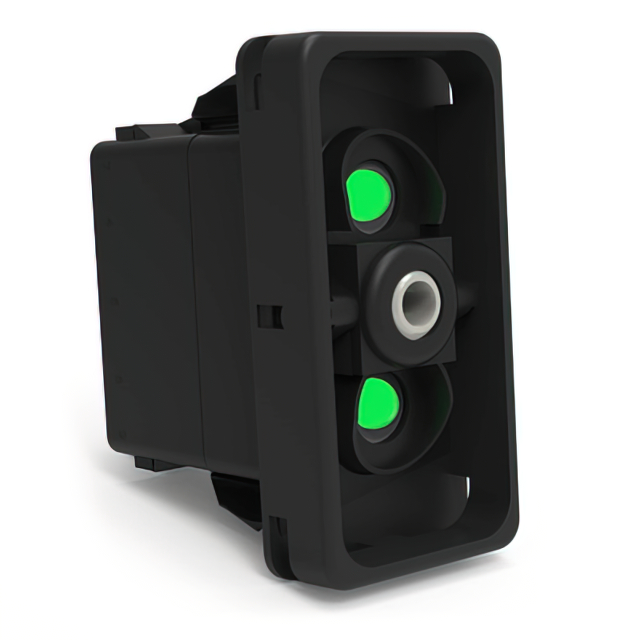

SWITCH ROCKER DPDT 20A 12V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH ROCKER DPDT 20A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 20A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	VLD2UHH1-00000-000	VLD2UHH1 Series

Actuator Marking	Varies by Cap	Varies by Cap, No Marking
Actuator Type	Actuator Arm, Cap Required - Illuminated	Actuator Arm, Cap Required - Illuminated, Convex (Reverse V) - Illuminated
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Circuit	DPDT	DPDT
Color - Actuator/Cap	-	Black
Current Rating (Amps)	20 A	20 A
Electrical Life	100000 Cycles	100000 Cycles
Illumination Type, Color	LED, Green/Green	LED, Green/Green
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66/IP68	IP66/IP68
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER DPDT 20A 12V

Part	Approval Agency	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mechanical Life	Electrical Life	Circuit	Switch Function	Ingress Protection	Actuator Marking	Termination Style	Illumination Type, Color	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap
Carling Technologies VLD2UHH1-00000-000	CSA, UL, VDE	Actuator Arm, Cap Required - Illuminated	85 °C	-40 °C	12 VDC	20 A	21.08 mm	36.83 mm	100000 Cycles	100000 Cycles	DPDT	Mom-Off-Mom	IP66/IP68	Varies by Cap	Quick Connect - 0.250" (6.3mm)	Green/Green, LED	12 V	Panel Mount, Snap-In
Carling Technologies VLD2UHH1-6AAY9-1Z2	CSA, UL, VDE	Convex (Reverse V) - Illuminated	85 °C	-40 °C	12 VDC	20 A	21.08 mm	36.83 mm	100000 Cycles	100000 Cycles	DPDT	Mom-Off-Mom	IP66/IP68		Quick Connect - 0.250" (6.3mm)	Green/Green, LED	12 V	Panel Mount, Snap-In	Black
Carling Technologies VLD2UHH1-69900-000	CSA, UL, VDE	Convex (Reverse V) - Illuminated	85 °C	-40 °C	12 VDC	20 A	21.08 mm	36.83 mm	100000 Cycles	100000 Cycles	DPDT	Mom-Off-Mom	IP66/IP68	No Marking	Quick Connect - 0.250" (6.3mm)	Green/Green, LED	12 V	Panel Mount, Snap-In	Black
