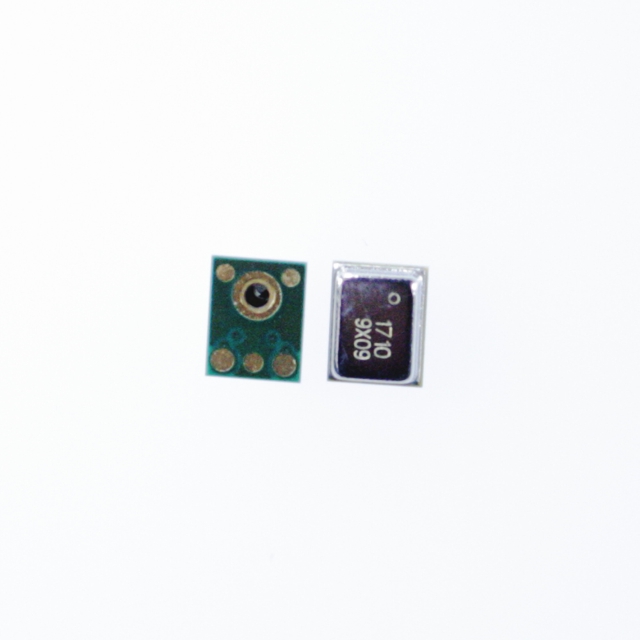

SPM04C-38/1186
ActiveBeStar Technologies, Inc.
MIC PIEZO MEMS ANLG OMNI -38DB
SPM04C-38/1186
ActiveBeStar Technologies, Inc.
MIC PIEZO MEMS ANLG OMNI -38DB
Description
General part information
SPM04C-38/1186
250 Hz ~ 10 kHz Analog Microphone Piezo MEMS 1.6 V ~ 3.6 V Omnidirectional (-38dB ±3dB) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | SPM04C-38/1186 |
|---|---|
| Current - Supply | 150 mA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 250 Hz |
| Height (Max) | 0.039 in |
| Output Type | Analog |
| Port Location | Top |
| Ratings | IP68 - Dust Tight, Waterproof |
| S/N Ratio | 60 dB |
| Sensitivity (Nominal) | -38 dB |
| Sensitivity Tolerance | 3 dB |
| Shape | Rectangle |
| Size / Dimension Length | 0.144 in |
| Size / Dimension Width | 0.112 in |
| Termination | Solder Pads |
| Type | Piezo MEMS |
| Voltage Range (Max) | 3.6 V |
| Voltage Range (Min) | 1.6 V |
