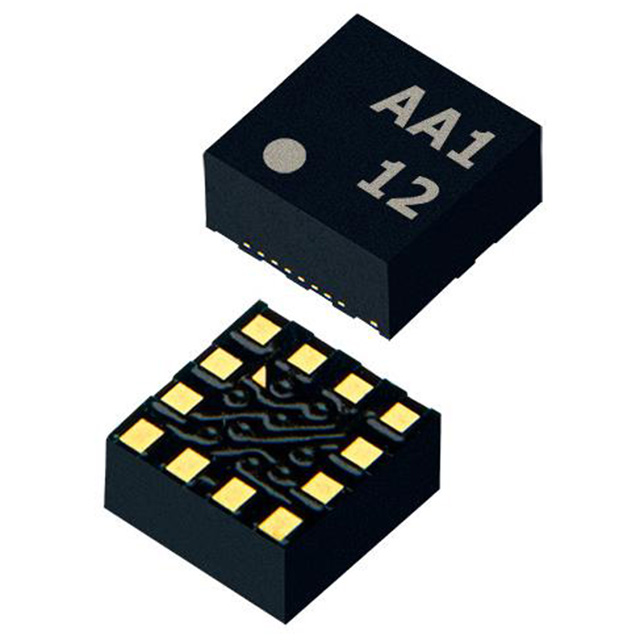

KX112-1042

Obsolete

Kionix Inc.

LOW HEIGHT TRI-AXIS, USER SELECT

Search across all available documentation for this part.

Obsolete

Kionix Inc.

LOW HEIGHT TRI-AXIS, USER SELECT

Technical Specifications

Parameters and characteristics commom to parts in this series

ACCELEROMETER 2-8G I2C/SPI 12LGA

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Supplier Device Package	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Sensitivity (LSB/g)	Bandwidth	Type	Package / Case	Axis [z]	Axis [y]	Axis [x]	Mounting Type	Sensing Range	Utilized IC / Part	Supplied Contents	Sensor Type	Interface
Kionix Inc. KX112-1042-SR	3.6 V	1.71 V	Selectable Scale	12-LGA (2x2)	4 g, 8 g	-2 g	2 g	85 °C	-40 °C	I2C, SPI	4096 LSB/g, 16384 LSB/g	800 Hz	Digital	12-UFLGA	Z	Y	X	Surface Mount
Kionix Inc. KX112-1042-EVB0A0	3.6 V	1.71 V																	2 g, 4 g, 8 g	KX112-1042	Board(s)	Accelerometer, 3 Axis	I2C, Serial, SPI
Kionix Inc. KX112-1042	3.6 V	1.71 V	Selectable Scale	12-LGA (2x2)	4 g, 8 g	-2 g	2 g	85 °C	-40 °C	I2C, SPI	4096 LSB/g, 16384 LSB/g	800 Hz	Digital	12-UFLGA	Z	Y	X	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g 800Hz 12-LGA (2x2)

Technical documentation and resources

No documents available
