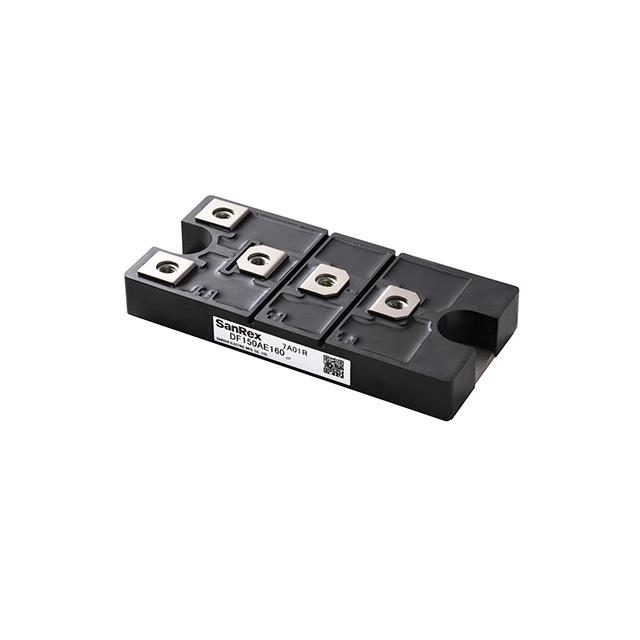

DF150AE160

Active

SanRex Corporation

DIODE MODULE 1600V 150A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 1600V 150A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DF150AE160	DF150 Series

Current - Average Rectified (Io)	150 A	150 A
Current - Reverse Leakage @ Vr	15 mA	15 mA
Diode Type	Three Phase	Three Phase
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.31 V	1.2 - 1.31 V
Voltage - Peak Reverse (Max)	1.6 kV	1.6 kV
Voltage - Peak Reverse (Max)	-	800 V

DIOE MODULE 800V 150A

Part	Diode Type	Mounting Type	Current - Average Rectified (Io)	Package / Case	Technology	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)
SanRex Corporation DF150AB80	Three Phase	Chassis Mount	150 A	Module	Standard	1.2 V	800 V	150 °C	-40 °C	15 mA
SanRex Corporation DF150AB160	Three Phase	Chassis Mount	150 A	Module	Standard	1.2 V		150 °C	-40 °C	15 mA	1.6 kV
SanRex Corporation DF150AE80	Three Phase	Chassis Mount	150 A	Module	Standard	1.31 V	800 V	150 °C	-40 °C	15 mA
SanRex Corporation DF150AE160	Three Phase	Chassis Mount	150 A	Module	Standard	1.31 V		150 °C	-40 °C	15 mA	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.6 kV Chassis Mount
