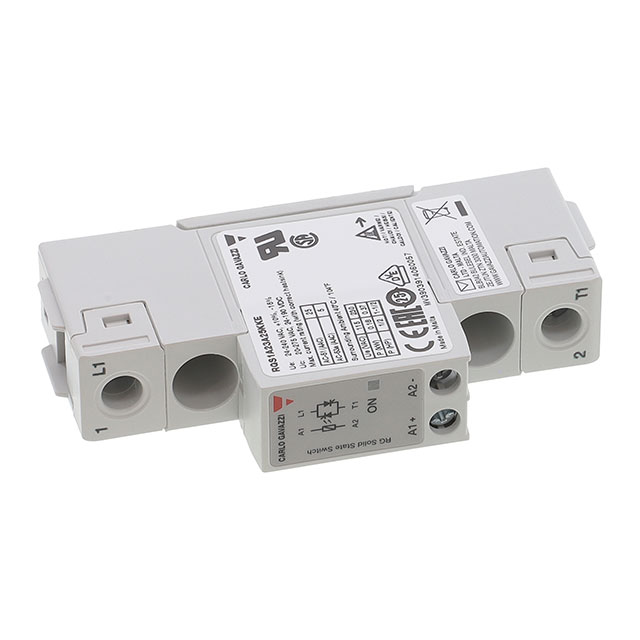

RGS1A23A25KKE
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-264V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RGS1A23A25KKE
ActiveCARLO GAVAZZI
SSR RELAY SPST-NO 25A 24-264V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RGS1A23A25KKE |
|---|---|
| Approval Agency | CE, UKCA, VDE, EAC, GL, CSA, cURus |
| Load Current | 25 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 190 VDC, 275 VAC |
| Voltage - Input [Min] | 24 VDC, 20 VAC/DC |
| Voltage - Load [Max] | 264 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 73.00 | |
| 10 | $ 69.35 | |||
| 50 | $ 65.70 | |||
| 100 | $ 63.51 | |||
Description
General part information
RGS1A23A25KKE
Solid State SPST-NO (1 Form A) Module
Documents
Technical documentation and resources
