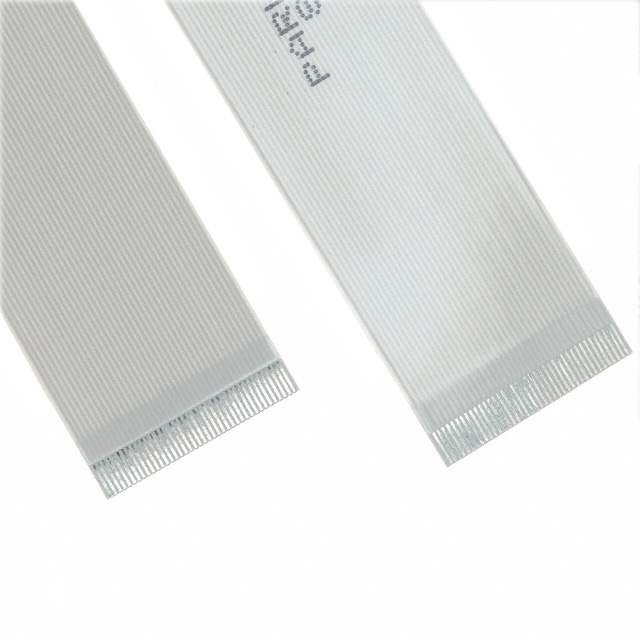

050R40-178BO

Active

Parlex USA LLC

CABLE FFC/FPC 40POS 0.5MM 7.01"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 40POS 0.5MM 7.01"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	050R40-178BO	050R4 Series

Cable Type	FPC, FFC	FPC, FFC
Length	178 mm	50.8 - 178 mm
Length	7.008 in	2 - 7.008 in
Length	-	0.669 - 5.984 in
Length	-	17 - 152 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	40	4 - 40
Pitch [x]	0.5 mm	0.5 mm
Pitch [x]	0.02 in	0.02 in
Termination Style	Top on One Side, Bottom on Other, Backers on Both Sides	Backers on Both Sides, Top on Both Sides, Top on One Side, Bottom on Other, Backers on Both Sides

CABLE FFC/FPC 40POS 0.5MM 5.98"

Part	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Length [x]	Length [x]	Number of Conductors	Cable Type	Length	Length
Parlex USA LLC 050R40-152B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	5.984 in	152 mm	40	FFC, FPC
Parlex USA LLC 050R40-102B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	4 in	101.6 mm
Parlex USA LLC 050R40-127B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	5 in	127 mm
Parlex USA LLC 050R40-51B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	2 in	50.8 mm
Parlex USA LLC 050R40-178B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	7.008 in	178 mm
Parlex USA LLC 050R40-178BO	Top on One Side, Bottom on Other, Backers on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	7.008 in	178 mm
Parlex USA LLC 050R4-102B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			4	FFC, FPC	4 in	101.6 mm
Parlex USA LLC 050R40-17BO	Top on One Side, Bottom on Other, Backers on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in	0.669 in	17 mm	40	FFC, FPC
Parlex USA LLC 050R4-76B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			4	FFC, FPC	3 in	76.2 mm
Parlex USA LLC 050R40-76B	Backers on Both Sides, Top on Both Sides	0.14 in	3.56 mm	0.5 mm	0.02 in			40	FFC, FPC	3 in	76.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position FFC, FPC Cable 0.020" (0.50mm) 7.008" (178.00mm)
