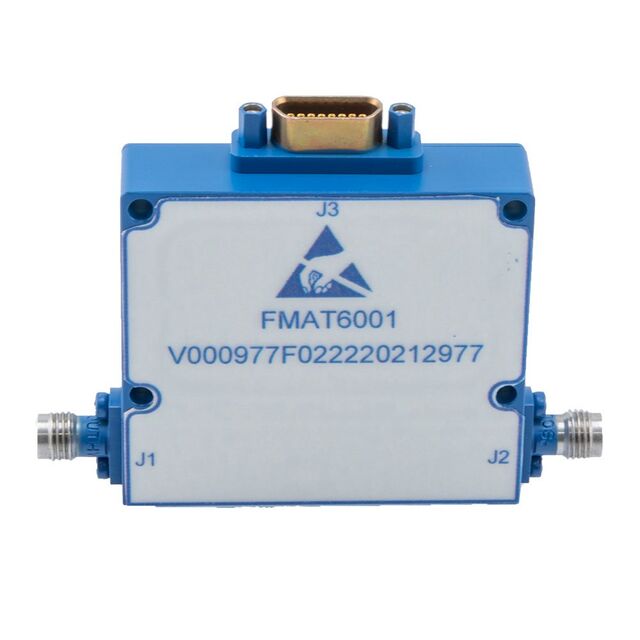

FMAT6001
ActiveFairview Microwave
PROGRAM ATTN 2.4MM JACK 18000MHZ
FMAT6001
ActiveFairview Microwave
PROGRAM ATTN 2.4MM JACK 18000MHZ
Description
General part information
FMAT6001
RF Attenuators 0dB ~ 30dB 18 GHz ~ 40 GHz 50 Ohms 24dBm Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAT6001 |
|---|---|
| Attenuation Value (Max) | 30 dB |
| Attenuation Value (Min) | 0 dB |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 18 GHz |
| Impedance | 50 Ohm |
| Package / Case | 2.4mm In-Line Module, Module |
| Package / Case Dimension | 2.4 mm |
| Package / Case Type | In-Line Module |
| Package Diameter | 2.4 mm |
| Package Name | In-Line Module |
| Power (Watts) | 24 dBm |
