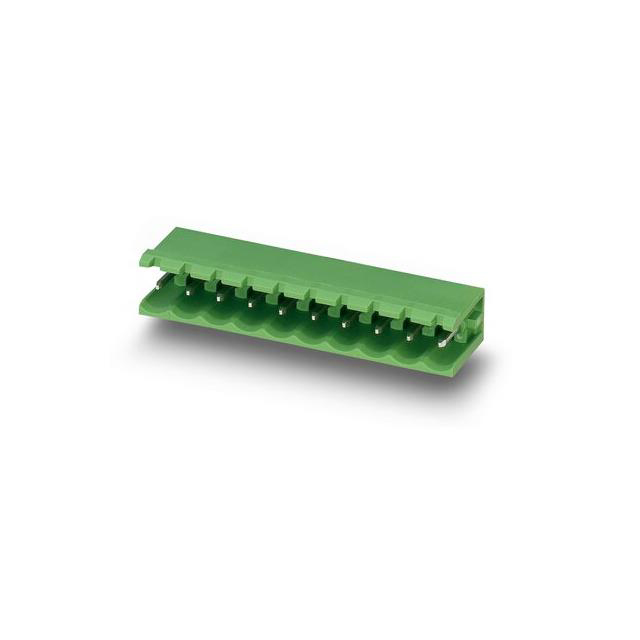

Specification	1756489

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	0.138 in
Current - IEC	12 A
Header Orientation	Right Angle
Header Orientation Angle	90 °
Insulation Height	0.339 in
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	14
Pitch	0.197 in
Positions Per Level	14
Termination Style	Solder
Type	Male Pins, Shrouded (2 Side), Header
Voltage - IEC	250 V

MSTB Series

Pluggable Terminal Blocks 20 Pos 5.08mm pitch Plug 24-12 AWG Screw

Part	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Features	Number of Positions	Positions Per Level	Voltage - IEC	Termination Style	Current - IEC	Plug Wire Entry Angle	Color	Mounting Type	Number of Levels	Pitch	Contact Mating Finish	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Type	Insulation Height	Screw Size	Wire Strip Length	Torque - Screw (Maximum)	Torque - Screw (Minimum)	Header Orientation Angle	Header Orientation	Voltage - UL	Current - UL	Contact Tail Length	Housing Material	Material Flammability Rating
Phoenix Contact 1995143	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	11	11	250 V	Screw - Rising Cage Clamp	12 A	180 °	Green	Free Hanging (In-Line)	1	5.08 mm	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm
Phoenix Contact 1927564			Mating and Mounting Flange	2	2	400 V	Solder	12 A		Black	Through Hole	1	5.08 mm	Tin			Header Male Pins Shrouded (4 Side)	0.35 in					90 °	Right Angle	300 V	15 A	0.114 in	Nylon PA Polyamide	UL94 V-0
Phoenix Contact 1911910	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	8	8	630 V	Screw - Rising Cage Clamp	16 A	180 °	Green	Free Hanging (In-Line)	1	0.197 in	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm			300 V	16 A		Nylon PA Polyamide	UL94 V-0
Phoenix Contact 1894613	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	2	2	250 V	Screw - Rising Cage Clamp	12 A	180 °	Yellow	Free Hanging (In-Line)	1	5.08 mm	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm
Phoenix Contact 1777918	30 AWG	12 AWG	Mating Flange Retention Latches (Non-Wire Side)	14	14	630 V	Screw - Pressure Clip	12 A	180 °	Green	Free Hanging (In-Line)	1	5.08 mm	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	1.083 in	M2.5	10 mm	0.6 Nm	0.5 Nm			300 V	15 A		Nylon PA Polyamide	UL94 V-0
Phoenix Contact 1717796			Mating and Mounting Flange	4	4	250 V	Solder	16 A		Black	Through Hole	1	5.08 mm	Tin			Header Male Pins Shrouded (4 Side)						90 °	Right Angle
Phoenix Contact 1778043	30 AWG	12 AWG	Mating Flange	8	8	630 V	Screw - Rising Cage Clamp	12 A	180 °	Green	Free Hanging (In-Line)	1	5.08 mm	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm			300 V	15 A		Nylon PA Polyamide	UL94 V-0
Phoenix Contact 1779534	30 AWG	12 AWG	Retention Latches (Non-Wire Side)	14	14	630 V	Screw - Pressure Clip	12 A	180 °	Green	Free Hanging (In-Line)	1	0.197 in	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M2.5	10 mm	0.6 Nm	0.5 Nm			300 V	15 A		Nylon PA Polyamide	UL94 V-0
Phoenix Contact 1760158	30 AWG	12 AWG	Positions Stamped Retention Latches (Non-Wire Side)	20	20	250 V	Screw - Rising Cage Clamp	12 A	180 °	Green	Free Hanging (In-Line)	1	5.08 mm	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm
Phoenix Contact 1759392	30 AWG	12 AWG	Retention Latches (Non-Wire Side) Strain Relief	16	16	630 V	Screw - Rising Cage Clamp	12 A	180 °	Green	Free Hanging (In-Line)	1	0.197 in	Tin	0.2 mm²	2.5 mm²	Female Sockets Plug	0.591 in	M3	7 mm	0.6 Nm	0.5 Nm			300 V	10 A		Nylon PA Polyamide	UL94 V-0
