TA5FSHF

Active

Switchcraft Inc.

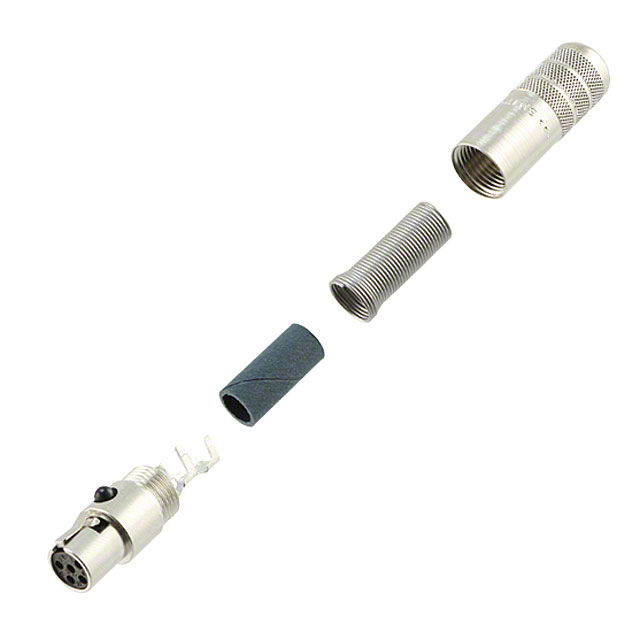

CONN PLUG FMALE MINI XLR 5P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE MINI XLR 5P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TA5FSHF

Applications	Audio, Medical
Backshell Material, Plating	Copper Alloy, Nickel
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Shielding	Shielded
Termination	Solder
Voltage Rating	125 VAC

CONN PLUG FMALE MINI XLR 5P SLDR

Part	Fastening Type	Insert Material	Features	Shell Material	Applications	Contact Material	Shielding	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish - Mating	Primary Material	Connector Type	Shell Size - Insert	Termination	Voltage Rating	Shell Finish	Backshell Material, Plating	Current Rating (Amps)	Orientation
Switchcraft Inc. TA5FSHF	Latch Lock	Thermoplastic	Backshell, Cable Clamp, Ground, Strain Relief	Copper Alloy	Audio, Medical	Copper Alloy	Shielded	Free Hanging (In-Line)	UL94 V-0	85 °C	-55 °C	Silver	Silver	Metal	Female Sockets, Plug	Mini XLR	Solder	125 VAC	Nickel	Copper Alloy, Nickel	4 A	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder
