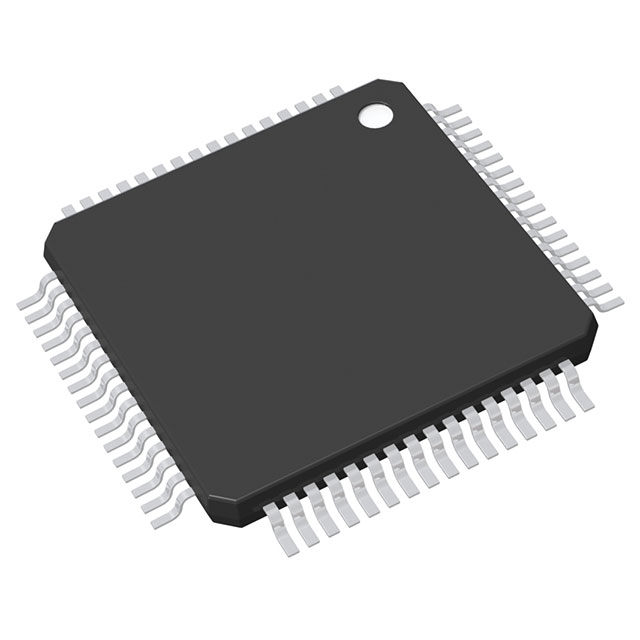

M38039G6HHP#U0
ActiveRenesas Electronics Corporation
8-BIT MICROCONTROLLERS WITH 16-48KB FLASH, 2KB RAM
Deep-Dive with AI
Search across all available documentation for this part.
M38039G6HHP#U0
ActiveRenesas Electronics Corporation
8-BIT MICROCONTROLLERS WITH 16-48KB FLASH, 2KB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M38039G6HHP#U0 | M38039 Series |
|---|---|---|
| Connectivity | SIO, UART/USART | SIO, UART/USART |
| Core Processor | 740 | 740 |
| Core Size | 8-Bit | 8-Bit |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Number of I/O | 56 | 56 |
| Operating Temperature [Max] | 85 C | 85 C |
| Operating Temperature [Min] | -20 °C | -20 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 64-LQFP | 64-LQFP, 64-SDIP |
| Package / Case | - | 19.05 mm |
| Package / Case | - | 0.75 in |
| Peripherals | LED, WDT, PWM | LED, WDT, PWM |
| Program Memory Size | 24 KB | 16 - 60 KB |
| Program Memory Type | QzROM | FLASH, QzROM |
| RAM Size | 2K x 8 | 2K x 8 |
| Speed | 16.8 MHz | 16.8 MHz |
| Supplier Device Package | 64-LFQFP (10x10) | 64-LQFP (14x14), 64-SDIP, 64-LFQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V | 1.8 - 2.7 V |
M38039 Series
IC MCU 8BIT 60KB FLASH 64LQFP
| Part | Core Processor | Program Memory Size | Peripherals | Program Memory Type | Connectivity | Number of I/O | Oscillator Type | Mounting Type | Core Size | RAM Size | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Speed | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation M38039FFLKP#Y1 | 740 | 60 KB | LED, PWM, WDT | FLASH | SIO, UART/USART | 56 | Internal | Surface Mount | 8-Bit | 2K x 8 | 64-LQFP | -20 °C | 85 C | 64-LQFP (14x14) | 2.7 V | 5.5 V | 16.8 MHz | ||
Renesas Electronics Corporation M38039G4HSP#U0 | 740 | 16 KB | LED, PWM, WDT | QzROM | SIO, UART/USART | 56 | Internal | Through Hole | 8-Bit | 2K x 8 | 64-SDIP | -20 °C | 85 C | 64-SDIP | 1.8 V | 5.5 V | 16.8 MHz | 19.05 mm | 0.75 in |
Renesas Electronics Corporation M38039GCHHP#U0 | 740 | 48 KB | LED, PWM, WDT | QzROM | SIO, UART/USART | 56 | Internal | Surface Mount | 8-Bit | 2K x 8 | 64-LQFP | -20 °C | 85 C | 64-LFQFP (10x10) | 1.8 V | 5.5 V | 16.8 MHz | ||
Renesas Electronics Corporation M38039FFHSP#U0 | 740 | 60 KB | LED, PWM, WDT | FLASH | SIO, UART/USART | 56 | Internal | Through Hole | 8-Bit | 2K x 8 | 64-SDIP | -20 °C | 85 C | 64-SDIP | 2.7 V | 5.5 V | 16.8 MHz | 19.05 mm | 0.75 in |
Renesas Electronics Corporation M38039FFLKP#U0 | 740 | 60 KB | LED, PWM, WDT | FLASH | SIO, UART/USART | 56 | Internal | Surface Mount | 8-Bit | 2K x 8 | 64-LQFP | -20 °C | 85 C | 64-LQFP (14x14) | 2.7 V | 5.5 V | 16.8 MHz | ||
Renesas Electronics Corporation M38039G6HHP#U0 | 740 | 24 KB | LED, PWM, WDT | QzROM | SIO, UART/USART | 56 | Internal | Surface Mount | 8-Bit | 2K x 8 | 64-LQFP | -20 °C | 85 C | 64-LFQFP (10x10) | 1.8 V | 5.5 V | 16.8 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M38039 Series
The 3803H Group is supported only for customers who have already adopted these products.
