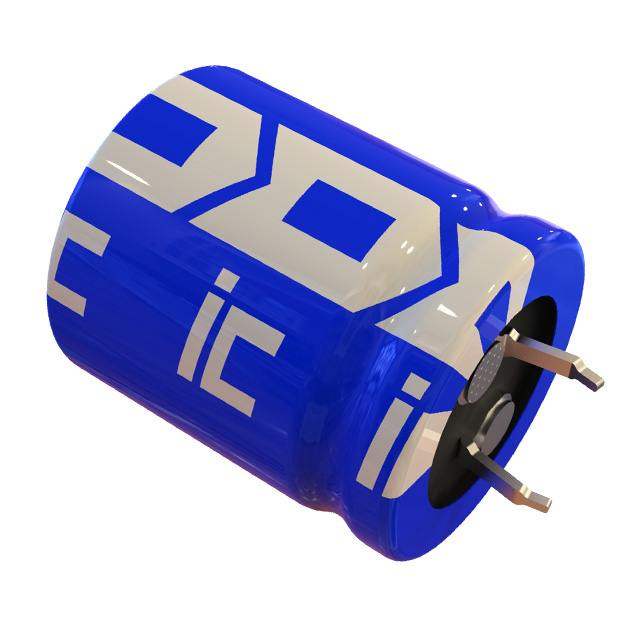

207DCN2R7M
ActiveCornell Dubilier Knowles
CAP 200F 20% 2.7V T/H
207DCN2R7M
ActiveCornell Dubilier Knowles
CAP 200F 20% 2.7V T/H
Description
General part information
207DCN2R7M
200 F (EDLC) Supercapacitor 2.7 V Radial, Can - Snap-In 15mOhm 1000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 207DCN2R7M |
|---|---|
| Capacitance | 200 F |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.394 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 1.181 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 2.7 VDC |
