104786-6
ActiveTE Connectivity AMP Connectors

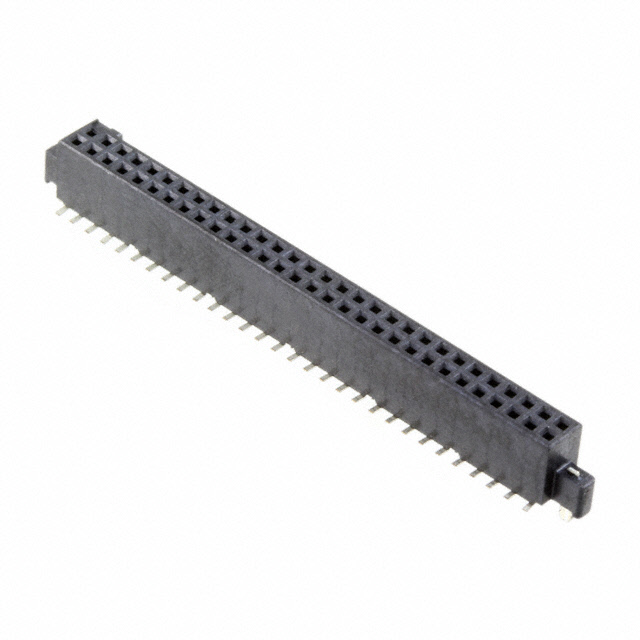

CONN RCPT 60POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104786-6
ActiveTE Connectivity AMP Connectors
CONN RCPT 60POS 0.05 GOLD SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 104786-6 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.187 in |
| Insulation Height | 4.75 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1452 | $ 8.34 | |
104786 Series
CONN RCPT 60POS 0.05 GOLD SMD
| Part | Contact Finish - Post | Connector Type | Number of Positions | Insulation Material | Number of Rows | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Type | Number of Positions Loaded | Termination | Insulation Color | Contact Shape | Insulation Height | Insulation Height | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104786-6 | Tin-Lead | Receptacle | 60 | Liquid Crystal Polymer (LCP) | 2 | Copper Alloy | 30 Áin | 0.76 Ám | Push-Pull | 150 Áin | 3.81 Ám | Gold | Female Socket | All | Solder | Black | Square | 0.187 in | 4.75 mm | 0.05 in | 1.27 mm | Surface Mount | 0.05 in | 1.27 mm |
Description
General part information
104786 Series
60 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
