NTU-2200-112UN
ActiveMEAN WELL USA Inc.
I/P +12V250A
NTU-2200-112UN
ActiveMEAN WELL USA Inc.
I/P +12V250A
Description
General part information
NTU-2200-112UN

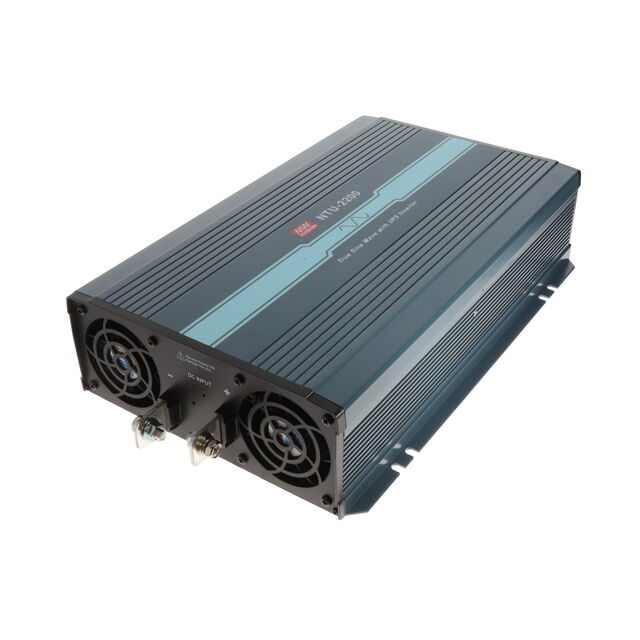

12VDC Voltage Input 2.2 kW Power Output Continuous Inverter, UPS 1 AC Outlets International
Technical Specifications
Parameters and characteristics for this part
| Specification | NTU-2200-112UN |
|---|---|
| AC Outlets (Count) | 1 count |
| Connector - Voltage Input | Terminals |
| Power - Output Continuous | 2.2 kW |
| Power - Output Surge | 4.4 kW |
| Region Utilized | International |
| Remote Capability | Yes |
| Size Height | 3.86 " |
| Size Length | 16.54 " |
| Size Width | 10.63 " |
| Type | Inverter, UPS |
| Voltage - Input | 12 V |
| Voltage - Output | 110 V |
