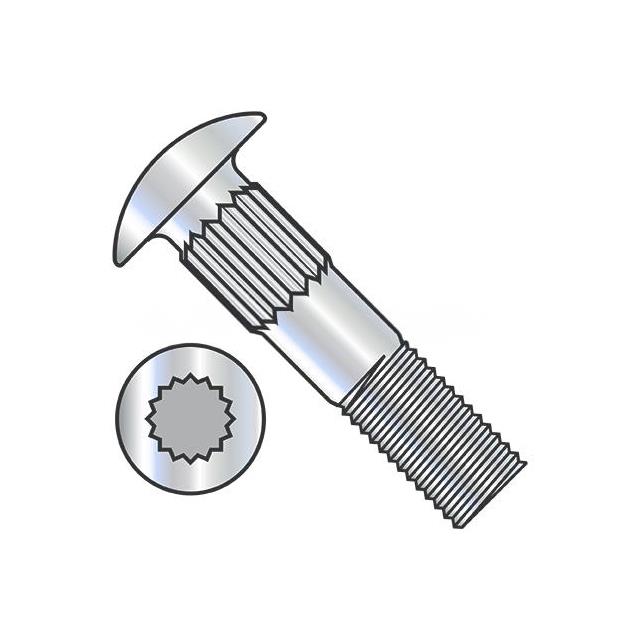

CARRIAGE BOLT - RIBBED NECK ROUN
1448CR
ActiveKanebridge
CARRIAGE BOLT - RIBBED NECK ROUN
Description
General part information
1448CR
1/4"-20 Round Head Carriage Bolt Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1448CR |
|---|---|
| Features | Standard |
| Head Diameter | 0.579 in |
| Head Height | 0.135 in |
| Length - Below Head | 3 in |
| Length - Overall | 3.135 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Round Head |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Carriage Bolt |
