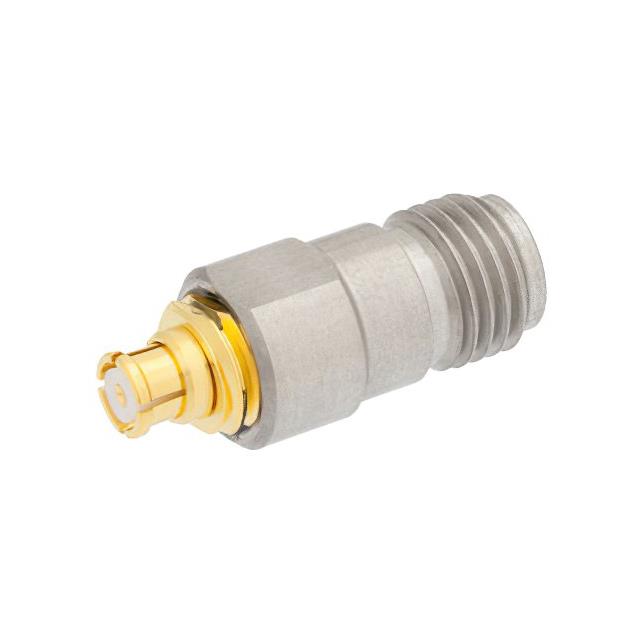

PE91064
ActivePasternack
PRECISION SMA FEMALE TO SMP FEMA
PE91064
ActivePasternack
PRECISION SMA FEMALE TO SMP FEMA
Description
General part information
PE91064
Adapter Coaxial Connector SMA Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE91064 |
|---|---|
| Adapter Series | SMA to SMP |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated, Gold |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | SMP Jack, Female Socket |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max | 26.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
