DPM 950S-FPSI

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Search across all available documentation for this part.

Active

Lascar Electronics

PROCESS METER LCD PNL MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DPM 950S-FPSI	DPM 950 Series

Display Characters - Height [y]	19 mm	19 mm
Display Characters - Height [y]	0.748 in	0.748 in
Display Type	LCD - Black Characters, Green/Red Backlight	LCD - Black Characters, Green/Red Backlight, LCD - Black Characters
Measuring Range [Max]	0.2 VDC	0.2 VDC
Measuring Range [Min]	-200 mV	-200 mV
Measuring Type	Voltage	Voltage
Number of Characters Per Row	3.5	3.5
Output Type	Reference	Reference
Panel Cutout Dimensions [x]	72 mm	72 mm
Panel Cutout Dimensions [y]	40 mm	40 mm
Termination Style	PC Pin	PC Pin
Type	Voltmeter	Voltmeter
Voltage - Supply [Max]	5.5 V	5.5 - 7.5 V
Voltage - Supply [Min]	4.5 V	3.5 - 4.75 V

PROCESS METER LCD PNL MOUNT

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Number of Characters Per Row	Type	Display Characters - Height [y]	Display Characters - Height [y]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Measuring Range [Min]	Measuring Range [Max]	Display Type	Measuring Type	Termination Style
Lascar Electronics DPM 950S-FPSI	40 mm	72 mm	3.5	Voltmeter	19 mm	0.748 in	Reference	4.5 V	5.5 V	-200 mV	0.2 VDC	LCD - Black Characters, Green/Red Backlight	Voltage	PC Pin
Lascar Electronics DPM 950S-EB-W	40 mm	72 mm	3.5	Voltmeter	19 mm	0.748 in	Reference	4.75 V	7.5 V	-200 mV	0.2 VDC	LCD - Black Characters	Voltage	PC Pin
Lascar Electronics DPM 950S	40 mm	72 mm	3.5	Voltmeter	19 mm	0.748 in	Reference	3.5 V	6.5 V	-200 mV	0.2 VDC		Voltage	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

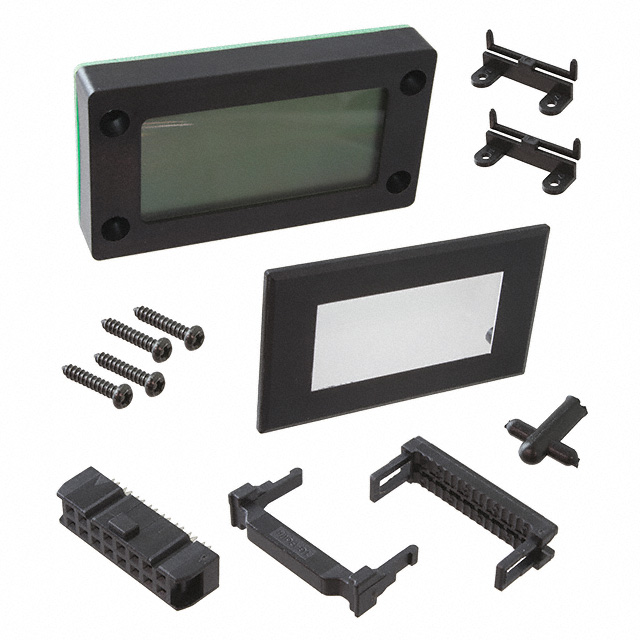

Voltmeter LCD - Black Characters, Green/Red Backlight Display Panel Mount
